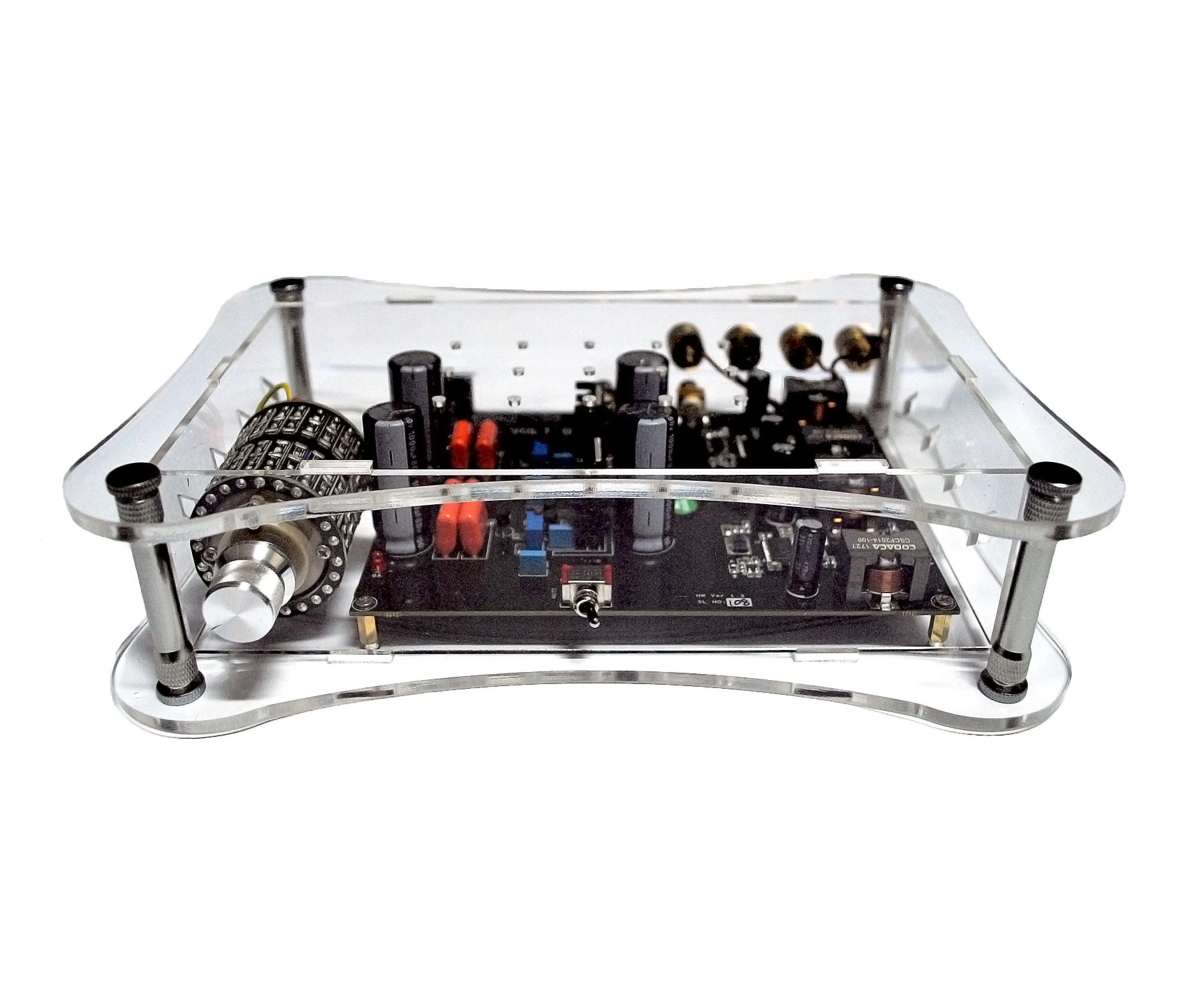

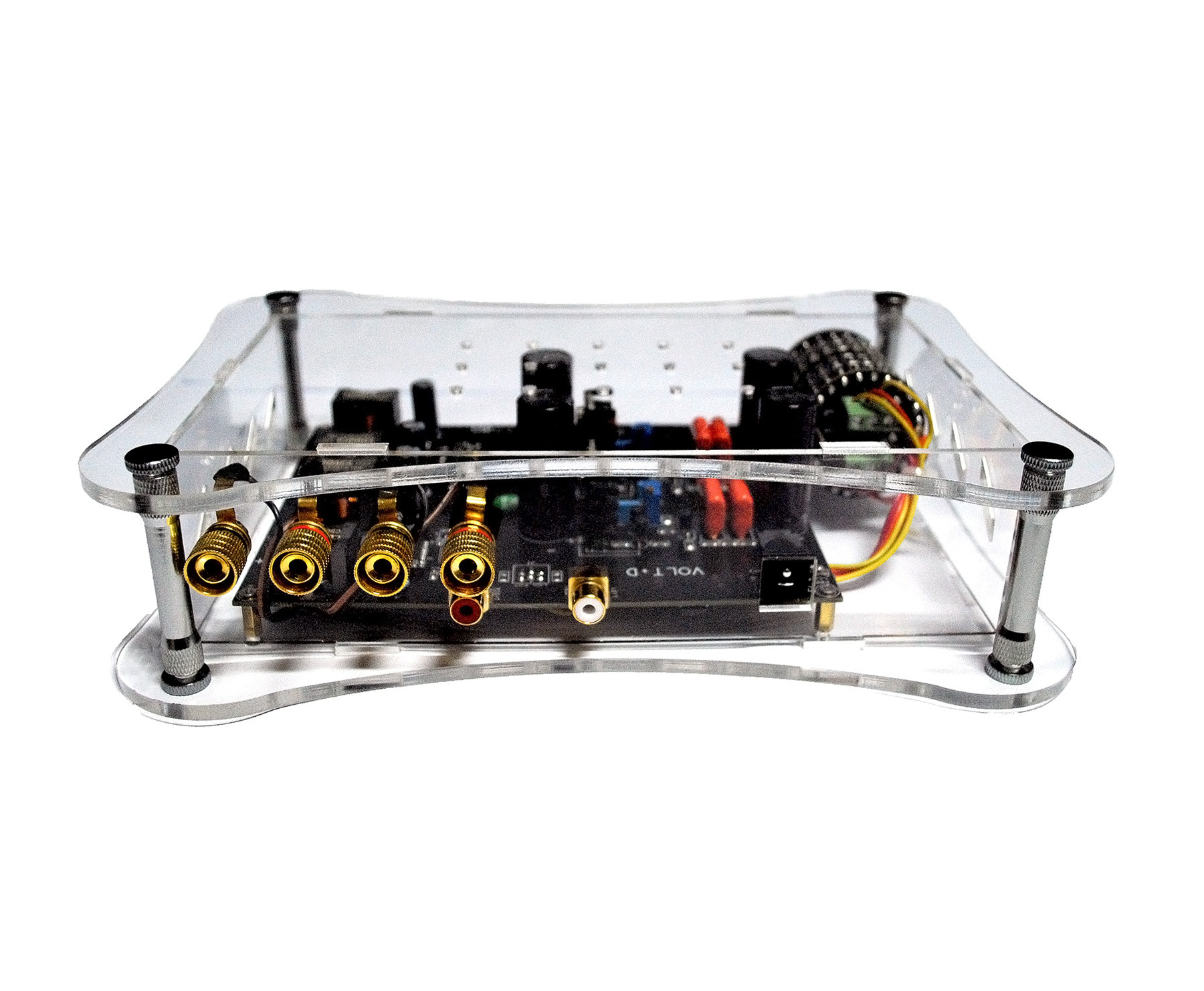

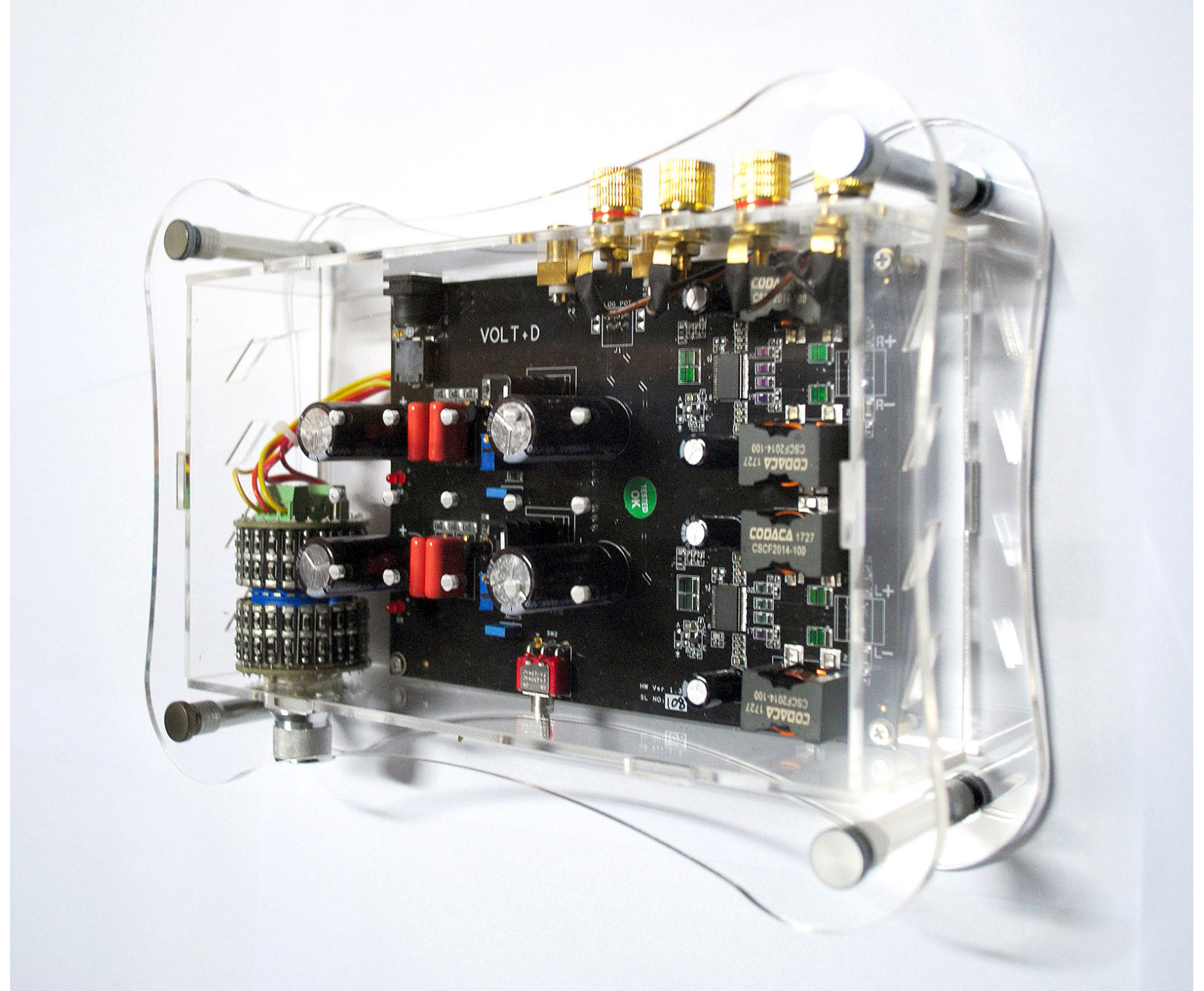

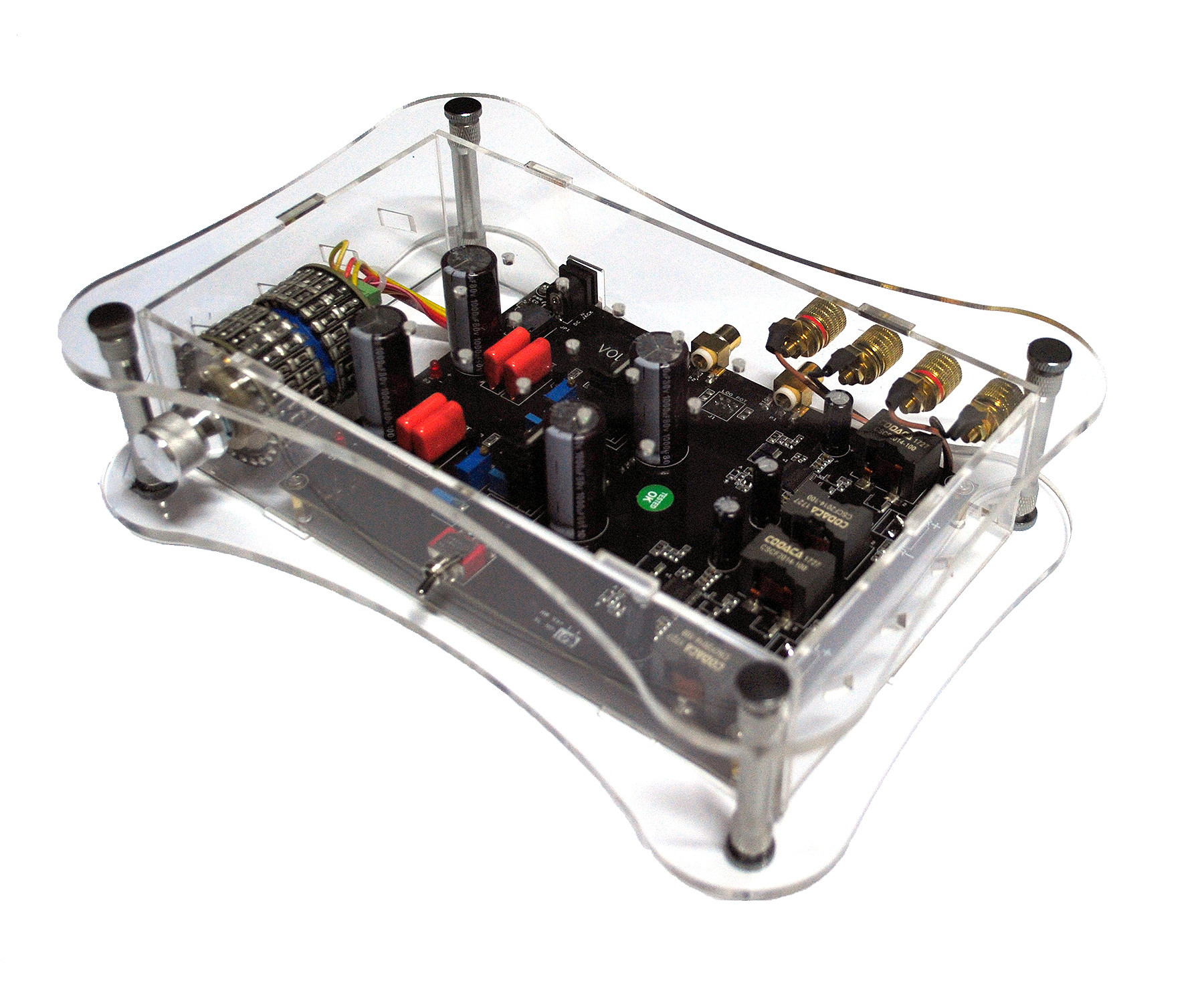

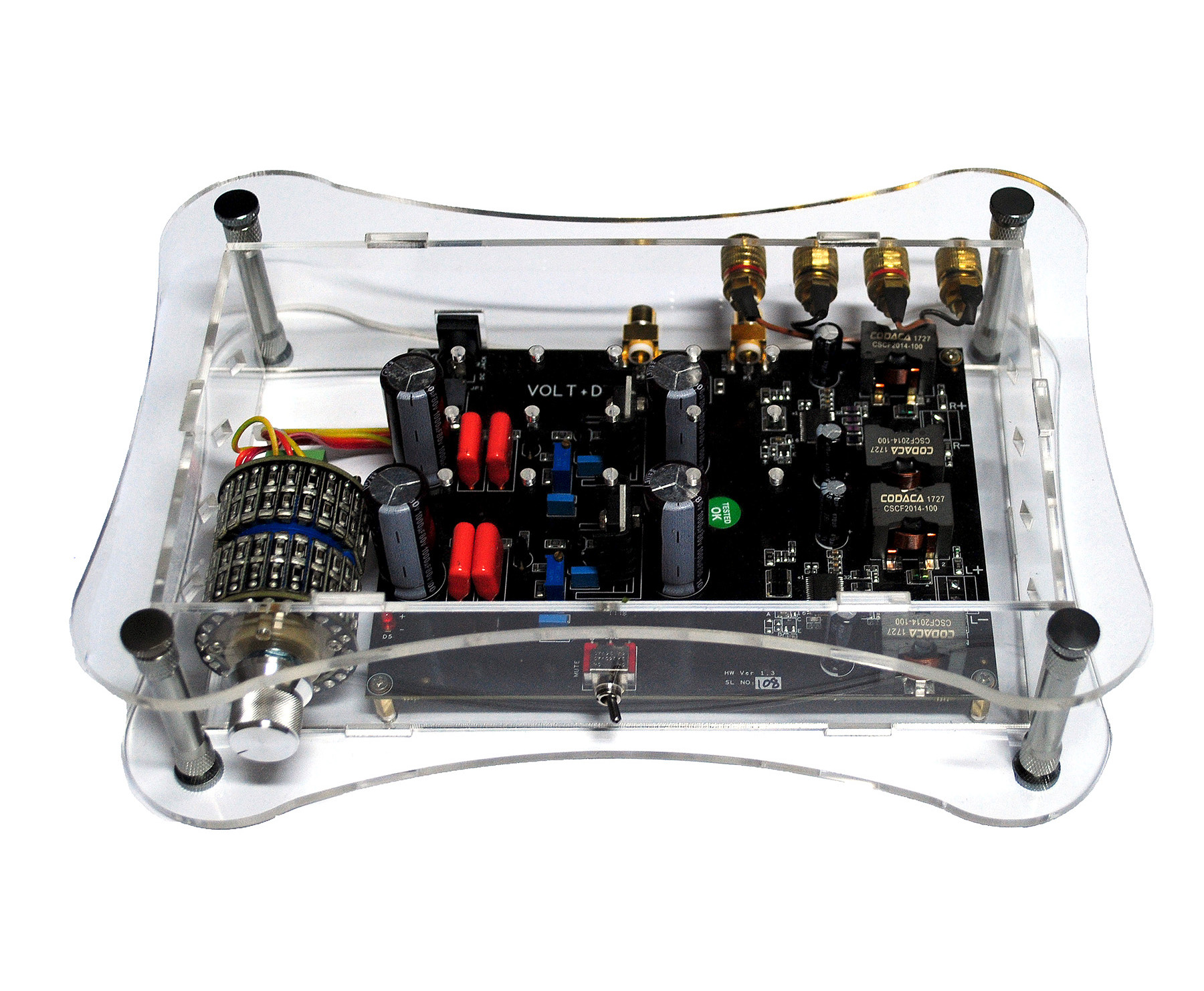

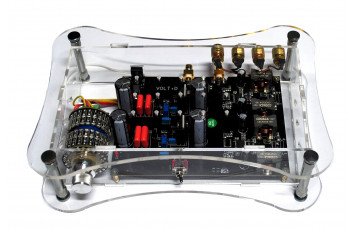

Finally, the dual mono Volt amplifier is here.
A class D amplifier that is really HIFI. We changed every capacitor on audio path to film. We beefed up the power supply and used a very good inductor on the output stage.

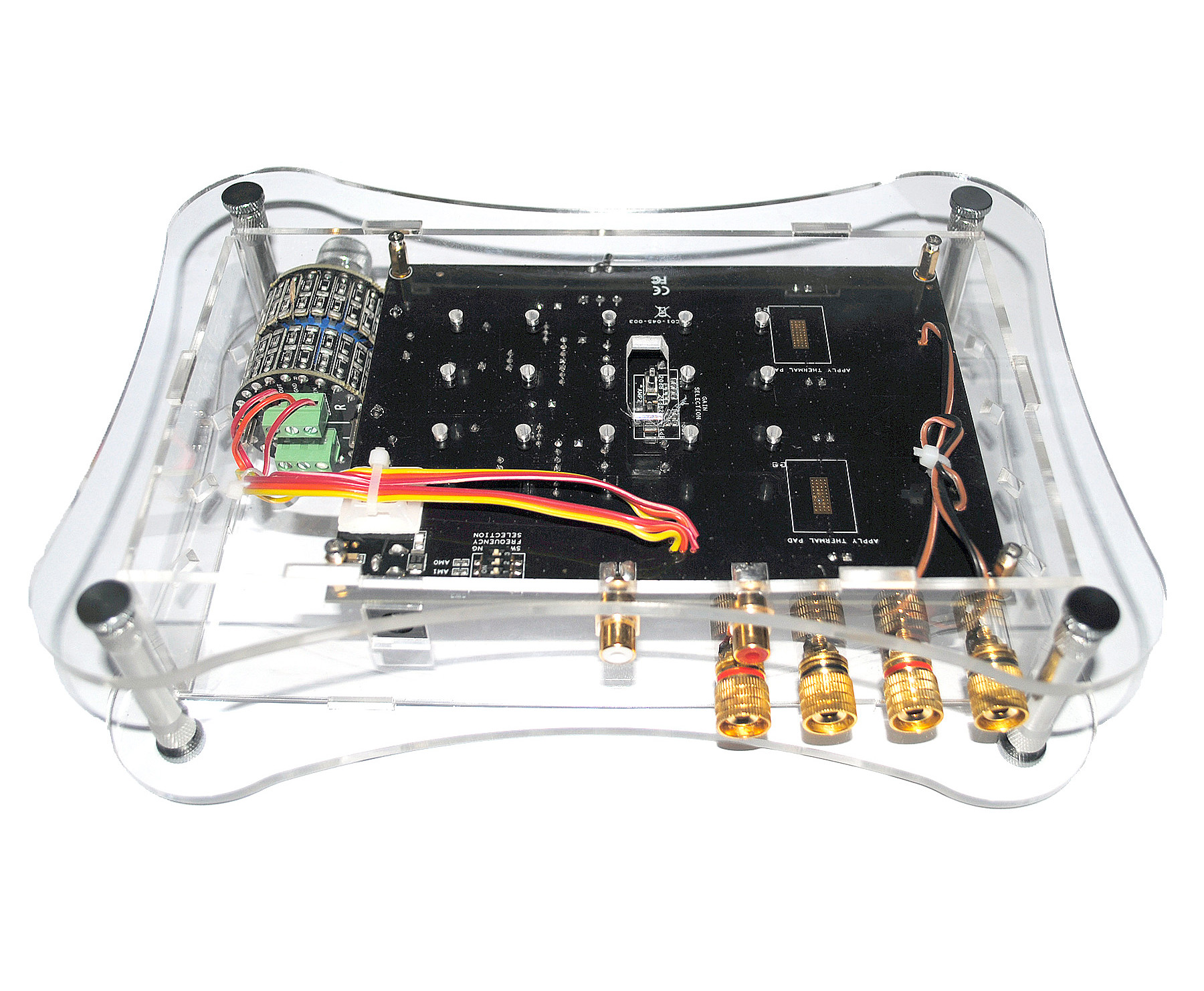

On the bottom you can chose the gain (20 and 26) as well as AM bandwidth avoidance circuit.
Overall the Volt+D will double the power available to your speaker, THD+N is better and sound quality was improved as well. Of course the stepped attenuator is included.
(Power available depends on PSU voltage, formula is V square / R, so for a 23v its about 60W per channel).
Features
- 2 x 60W Dual mono class D
- Mute switch
- 20dB/26dB gain switch
- Power Connector Jack Barrel size: 3.00mm ID (0.118"), 6.50mm OD (0.256")
- Gold plated RCA and Speaker terminals10K 24 position stepped attenuator
- 5mm acrylic case
Support & Downloads
See how we clean the power, by reviewing these documents:
CLICK HERE FOR AUDIO SUPPORT
(You will be directed to ComputerAudiophile where we have centralized our support center)
Kali + Piano 2.1 + Volt
Kali + Piano 2.1
Standoff Set
