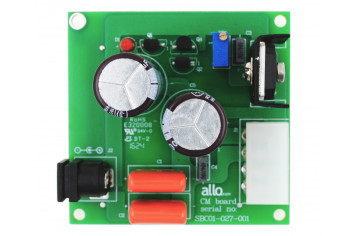

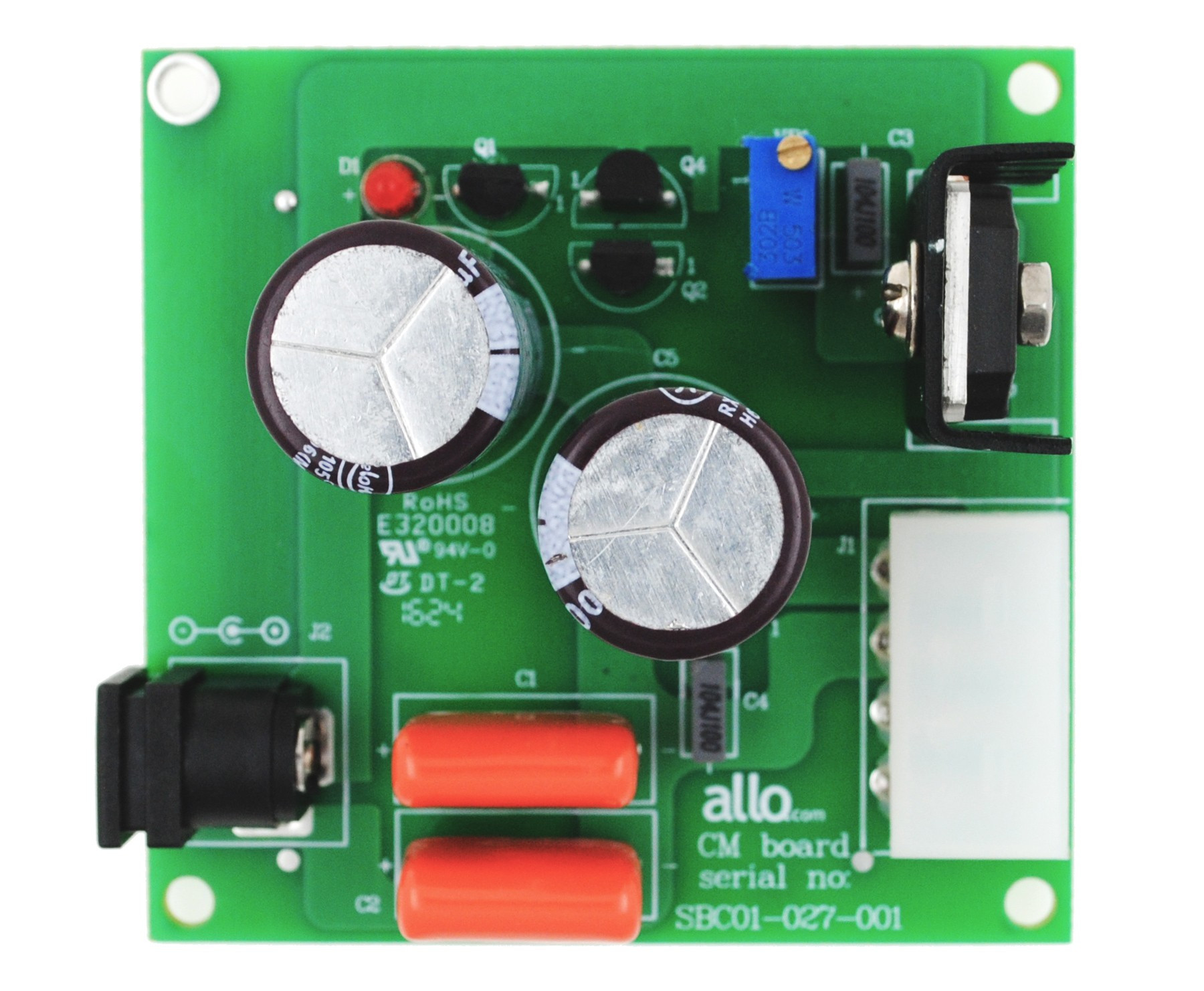

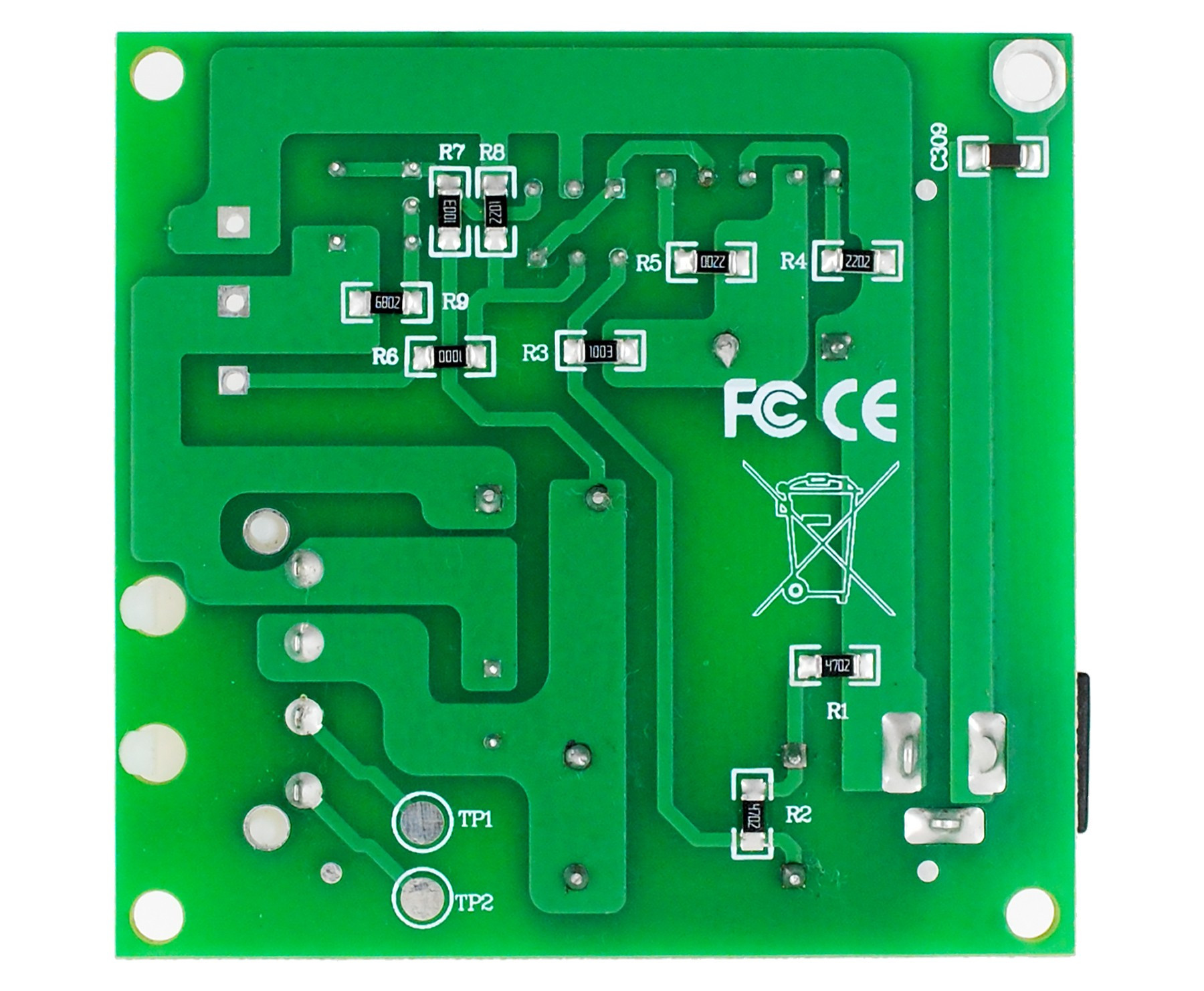

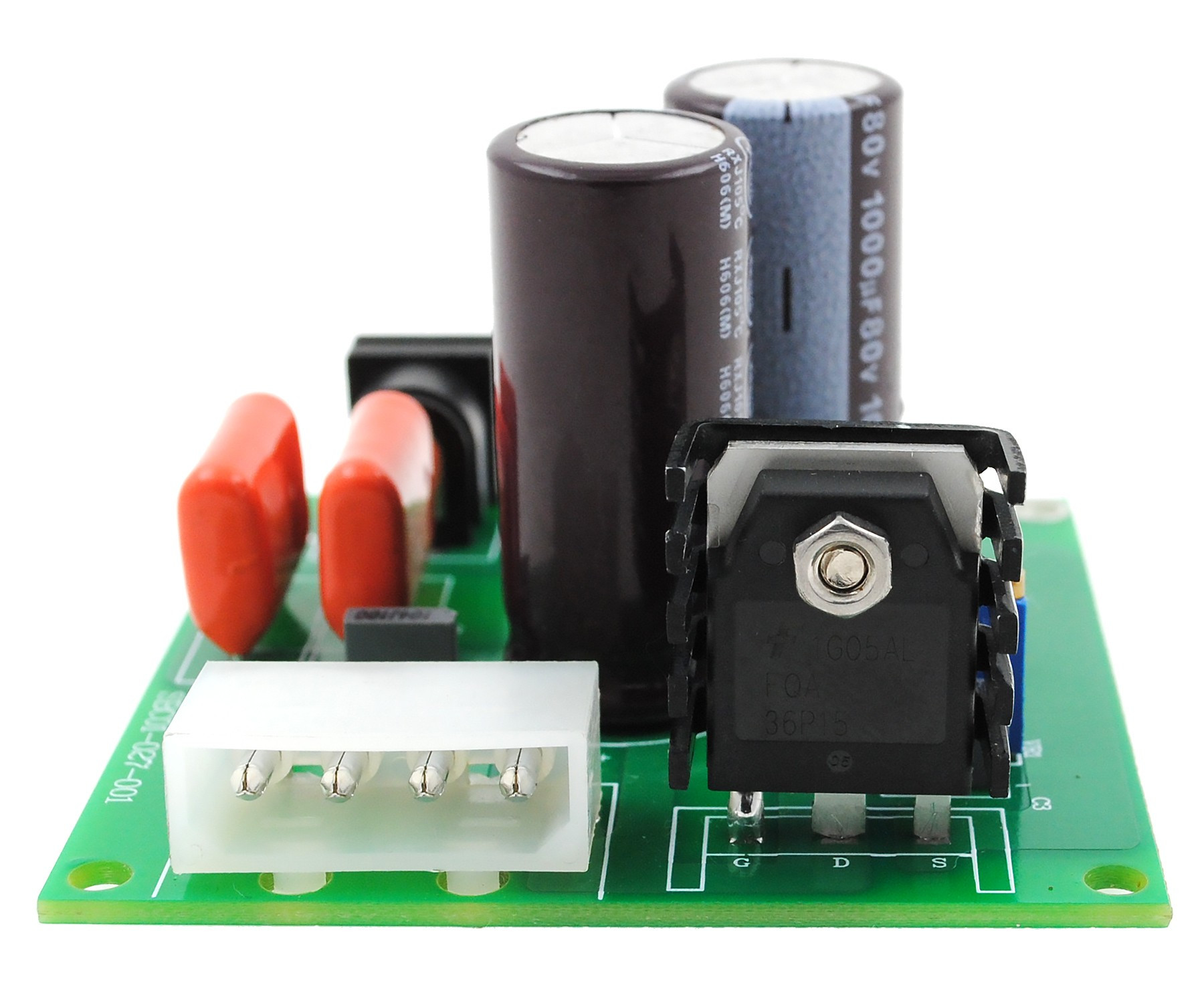

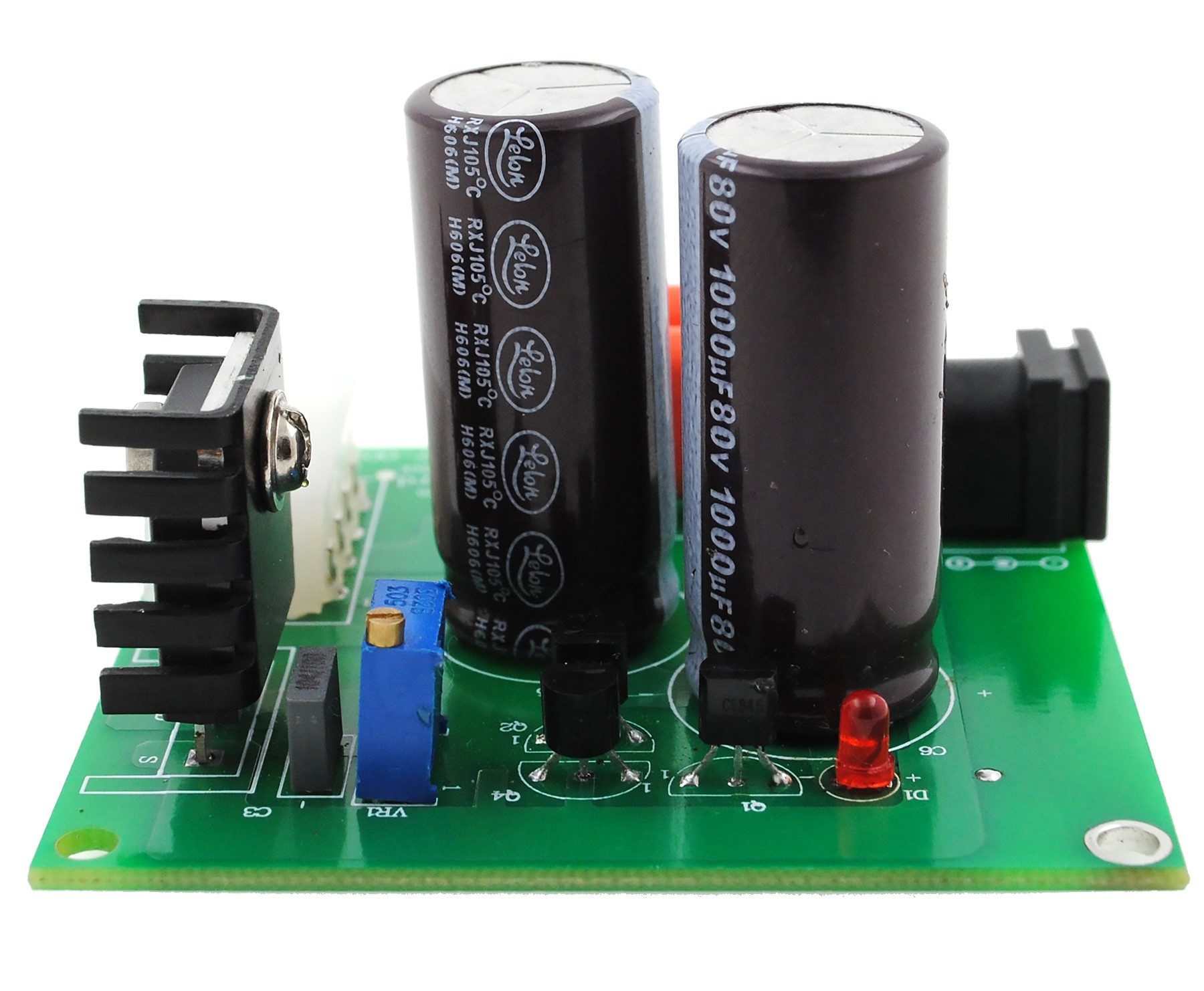

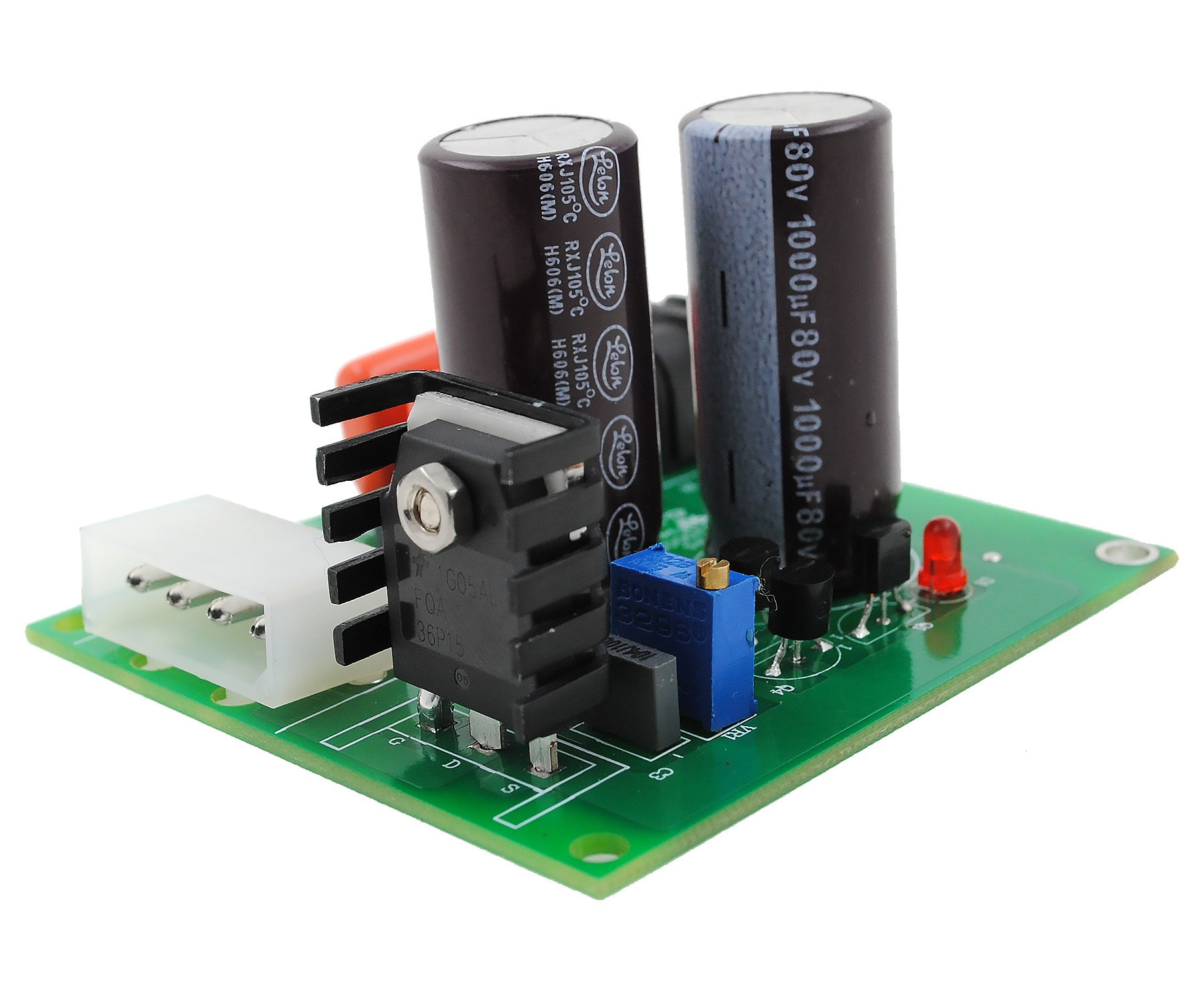

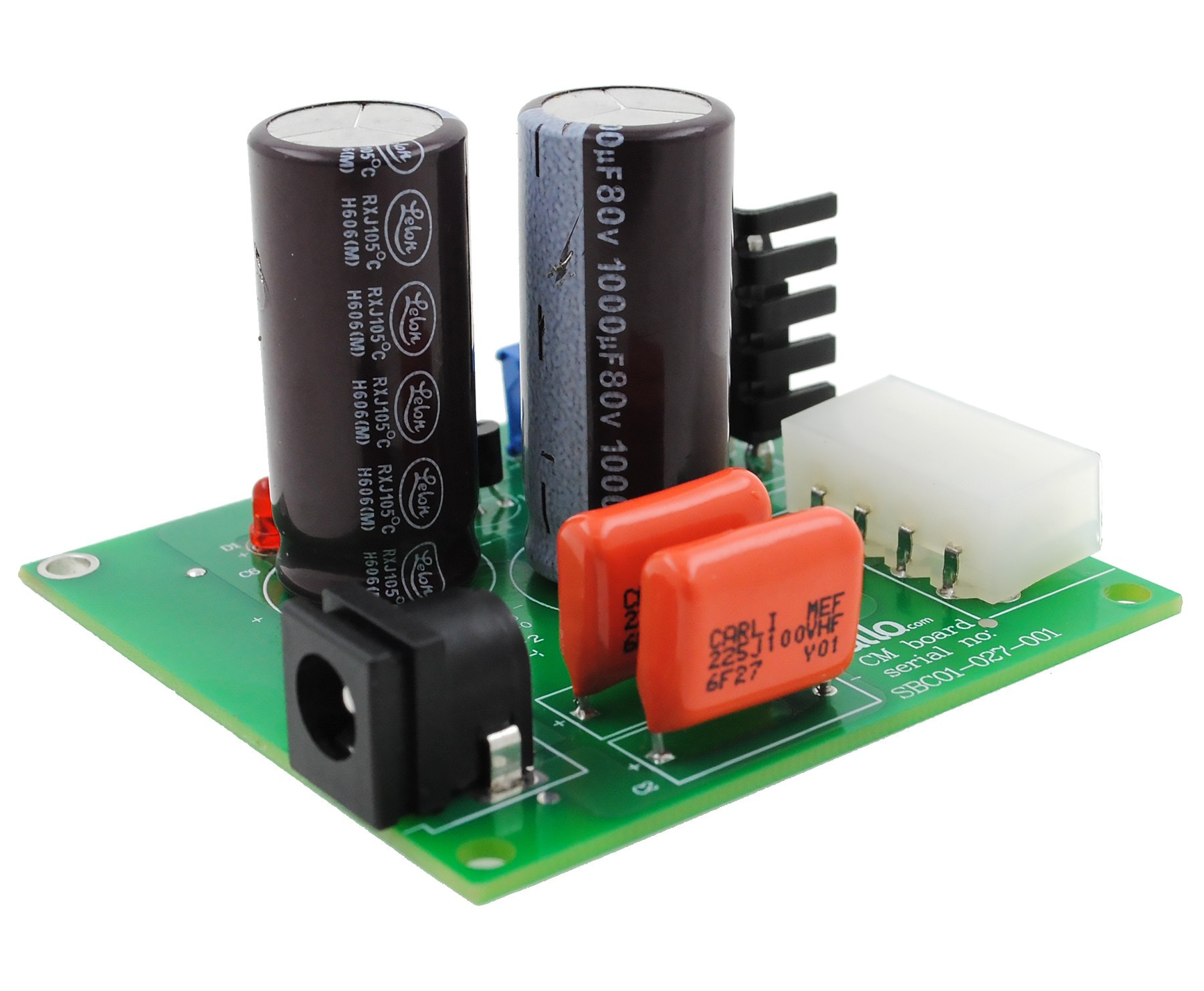

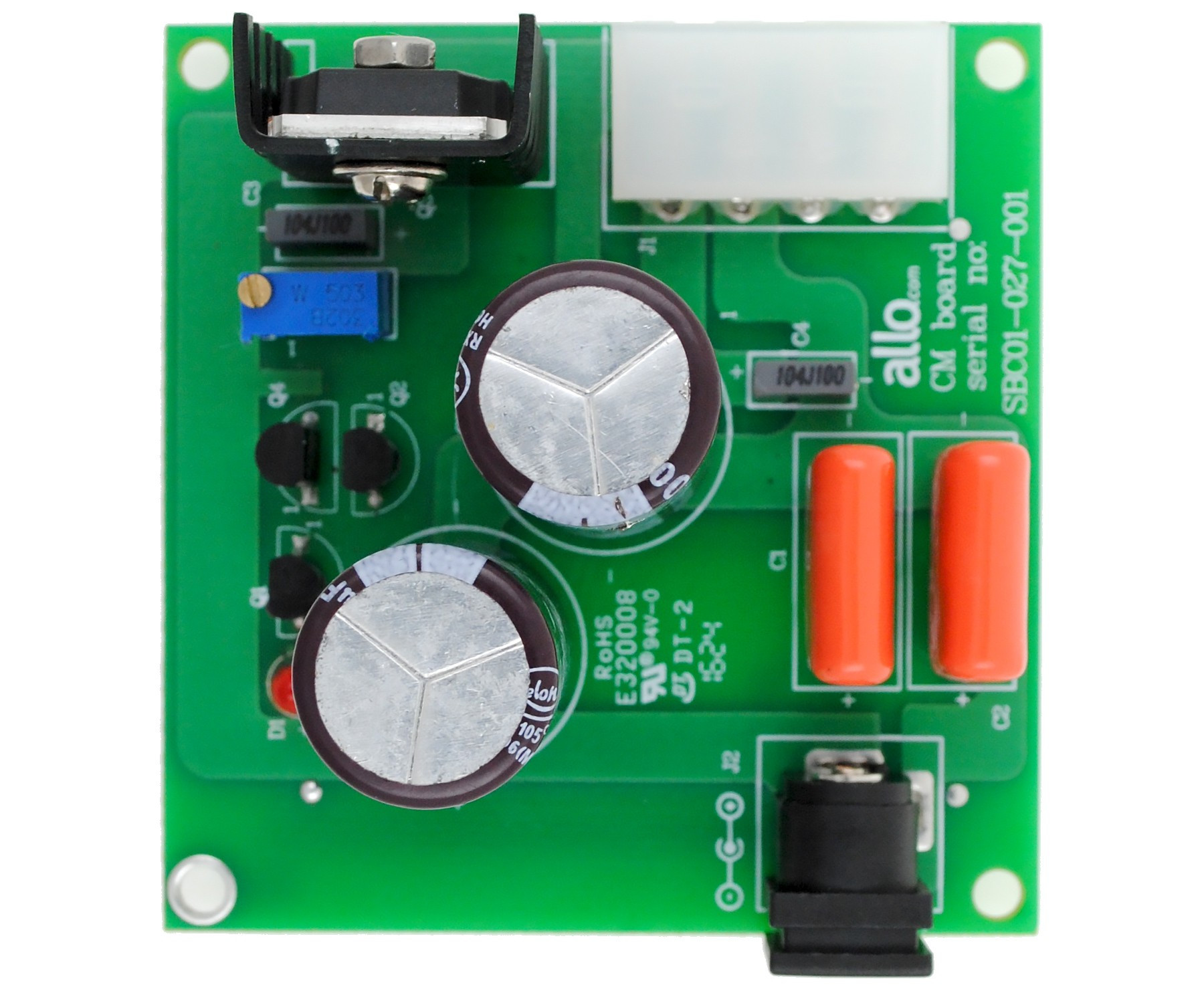

A Capacitance Multiplier is designed to make a small capacitor function like a capacitor that is much, much larger. This design reduces the output ripple/noise of any PSU to almost negligible levels (less than 5mV up to 1Mhz).
Note this is not a voltage regulator. The output voltage will track the input voltage (- dropout voltage).
Our CM board supports from 10V to 32V input @ 5 Amps.
|Min / Max||10V IN / 32V IN|
|Dropout Voltage||Trim pot selectable from 0-3V (dropout voltage should always be higher than ripple / noise of PSU)|
|Power Dissipation||Dropout Voltage x A used = W of heat|
|Suitability||This circuit is very suitable for class A and class D amplifiers or even to feed clean power to your SBCs|
|DC Connector Size||3mm x 7.3mm|
|Mating Plug Size||3mm x 6.5mm|
See how we clean the power, by reviewing these documents:
