Giga (EU) (Networking USB/Ethernet Hub)


$66.00 USD

Approx. €54 EUR
Items Shipped From EU
No Extra Fees For You

Warranty
1 Year

NOT IN EUROPE? CLICK HERE

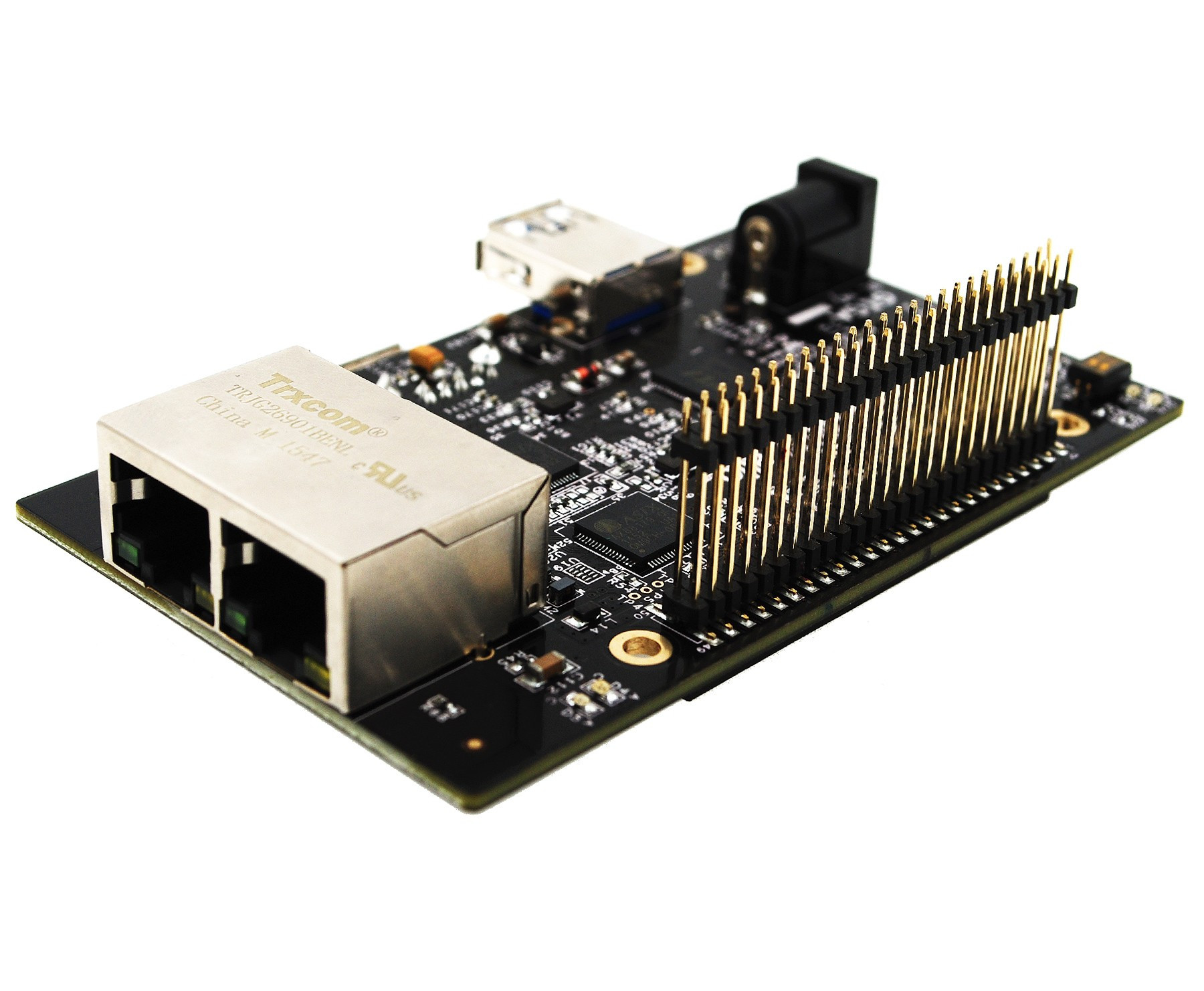

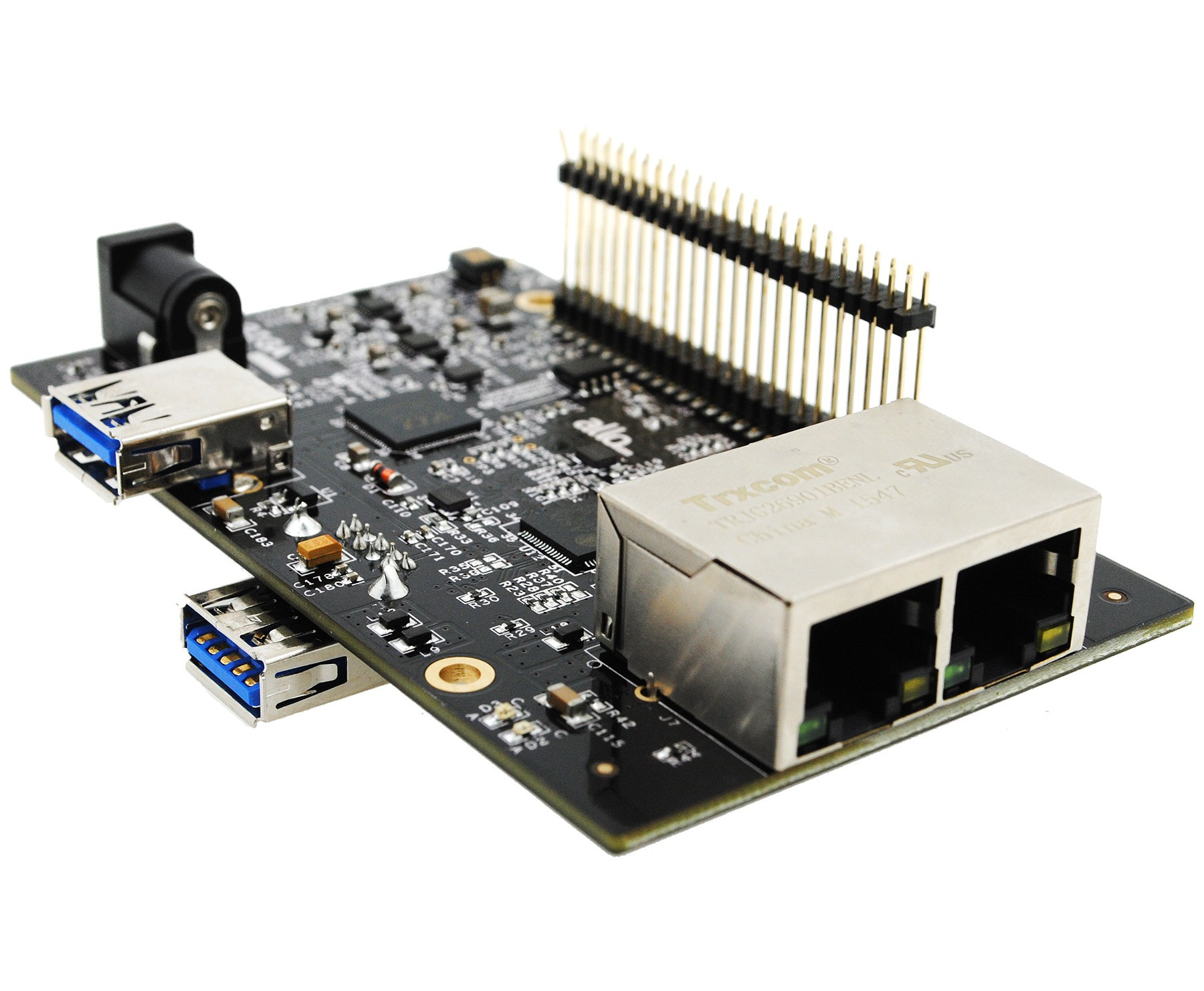

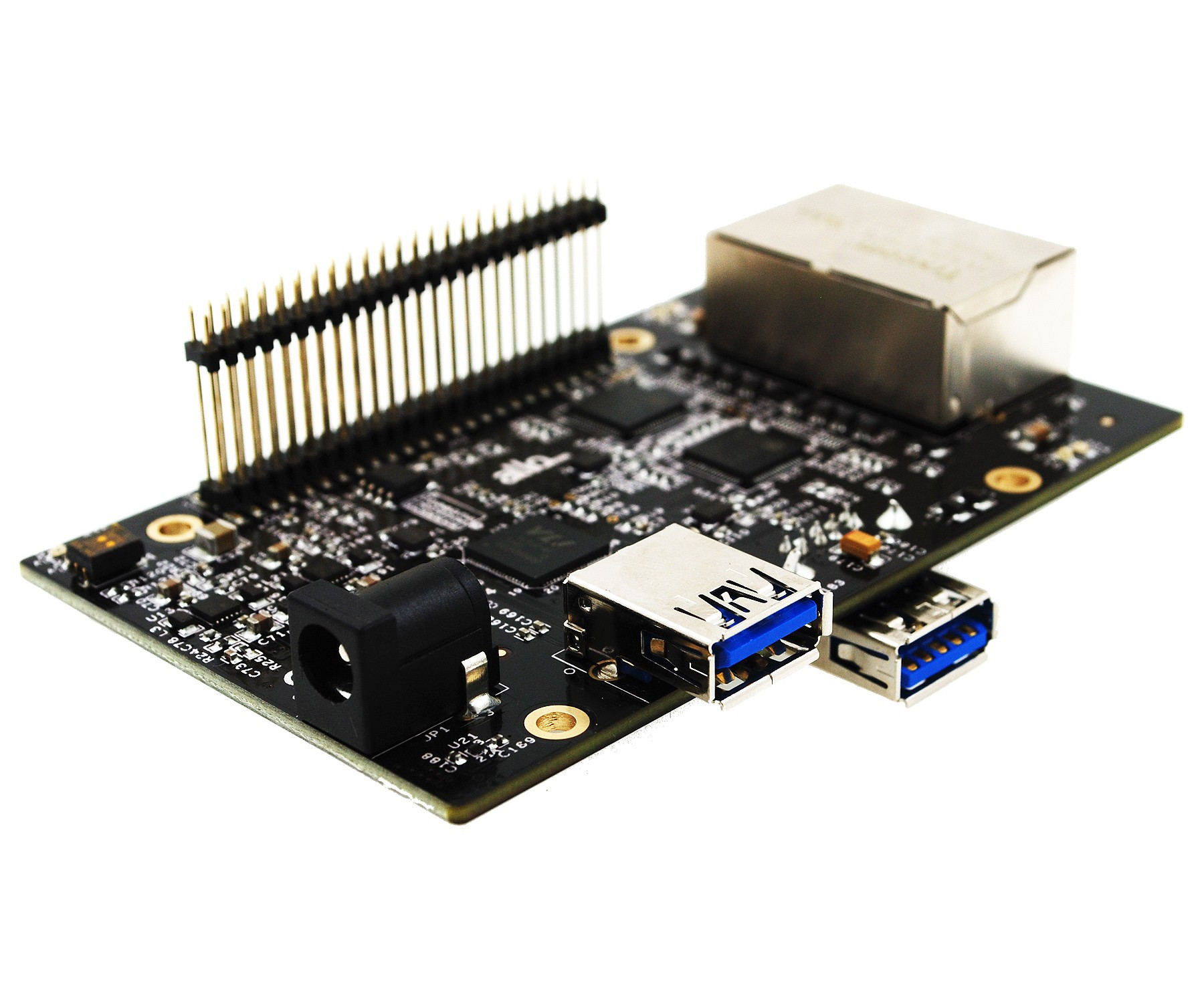

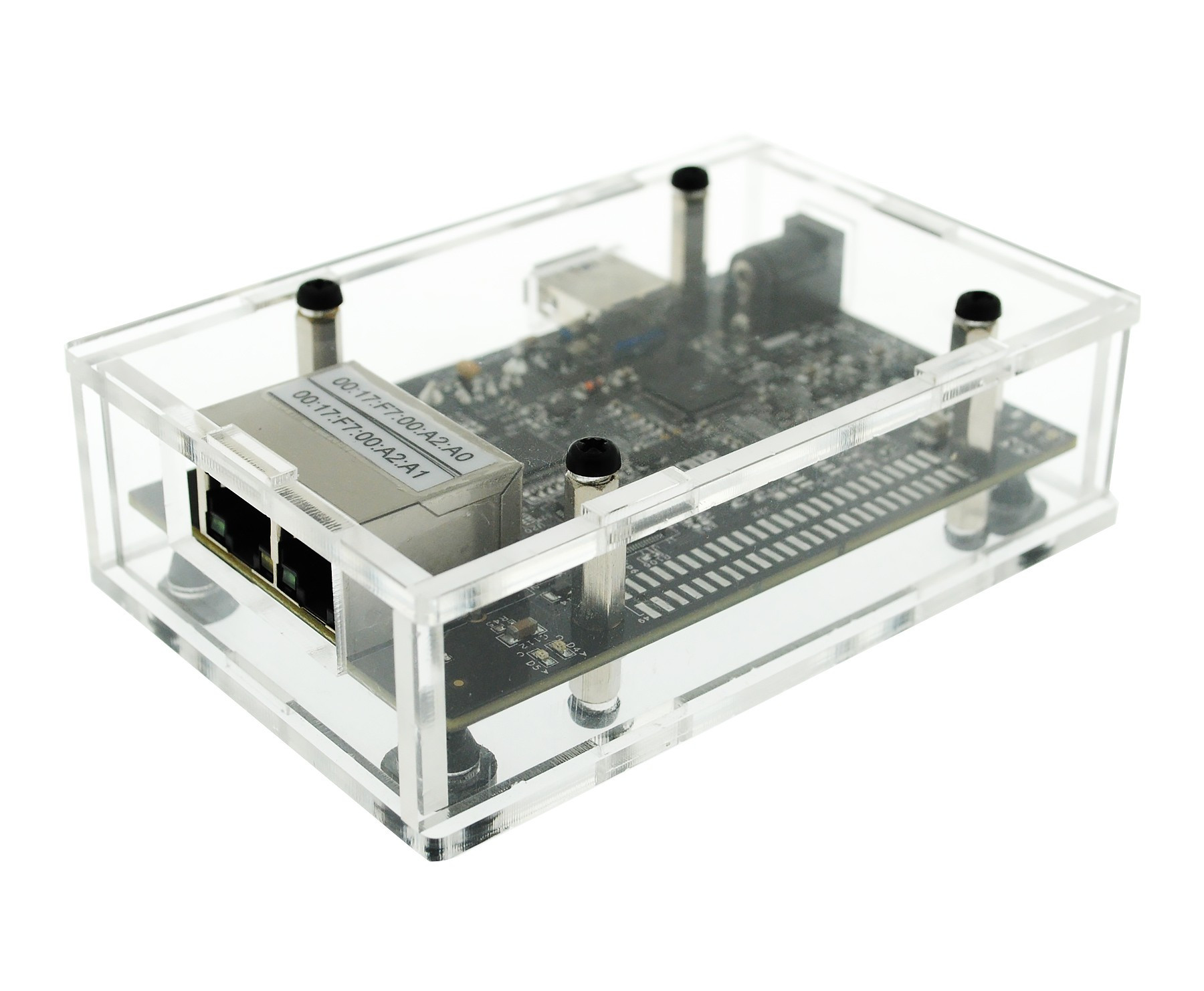

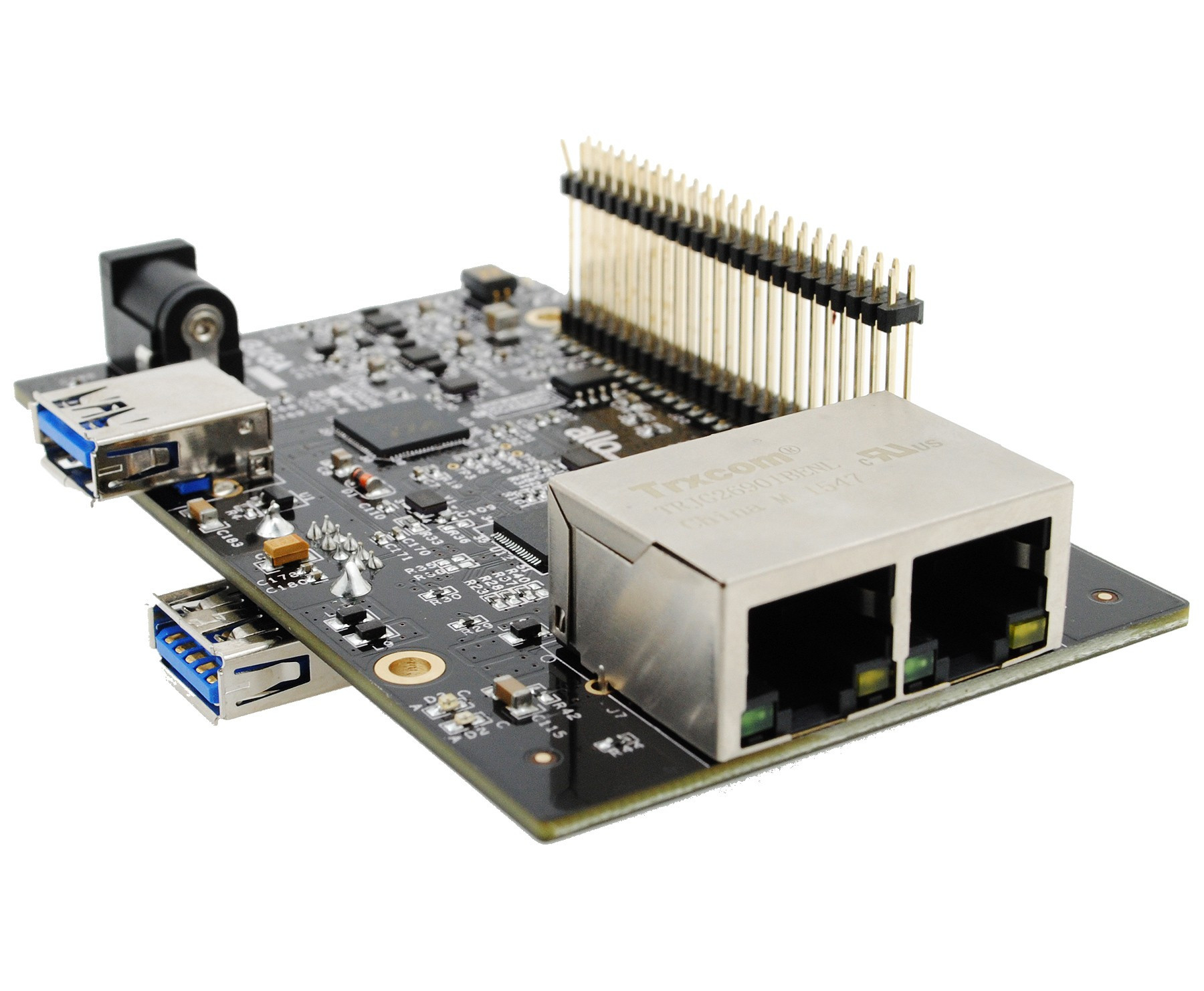

Add 2 X Gigabit Ethernet ports to your Sparky with this Shield. Installs in a snap and increases the versatility of your Sparky.

These 2 x GB Ethernet ports connect to Sparky by USB 3.0. We have reached packet transfer speeds of 200Mbps with both ports working and up to 600Mbps on a single port (speeds are for packet transfer only without additional security/services added). These transfer rates are more than acceptable for a house/SOHO and even SMB set up.

DC Connector Details

Applications

Sparky + GIGA Shield can be used to run many different open source applications such as:



  • SHIELD (Unified Threat Manager)
  • Ntop-NG (Traffic Monitoring/Network Analyzer)
  • OpenWRT (Embedded router distribution)
  • IPFire (Firewall)
  • OpenMediaValut (NAS Solution)
  • Squid/Nginx (Content filtering/Web load balancing Gateway)
  • Network/Application vulnerability Scanners
  • 4G Routers (With USB based Add-on modules)
  • Strongswan/Openswan (IPSec VPN)
  • OpenVPN (SSLVPN)
  • OpenBTS (Software based GSM Access Points)

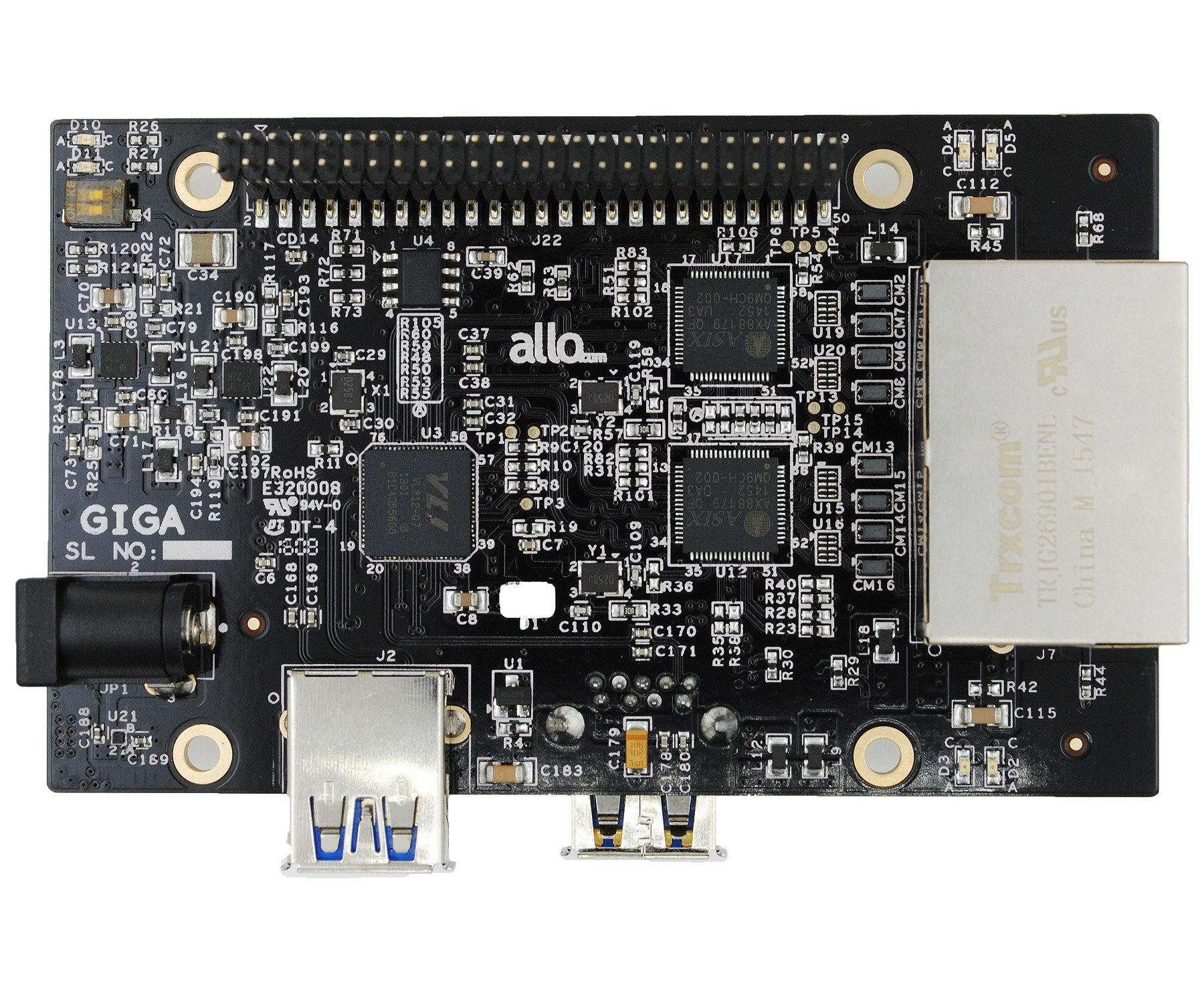

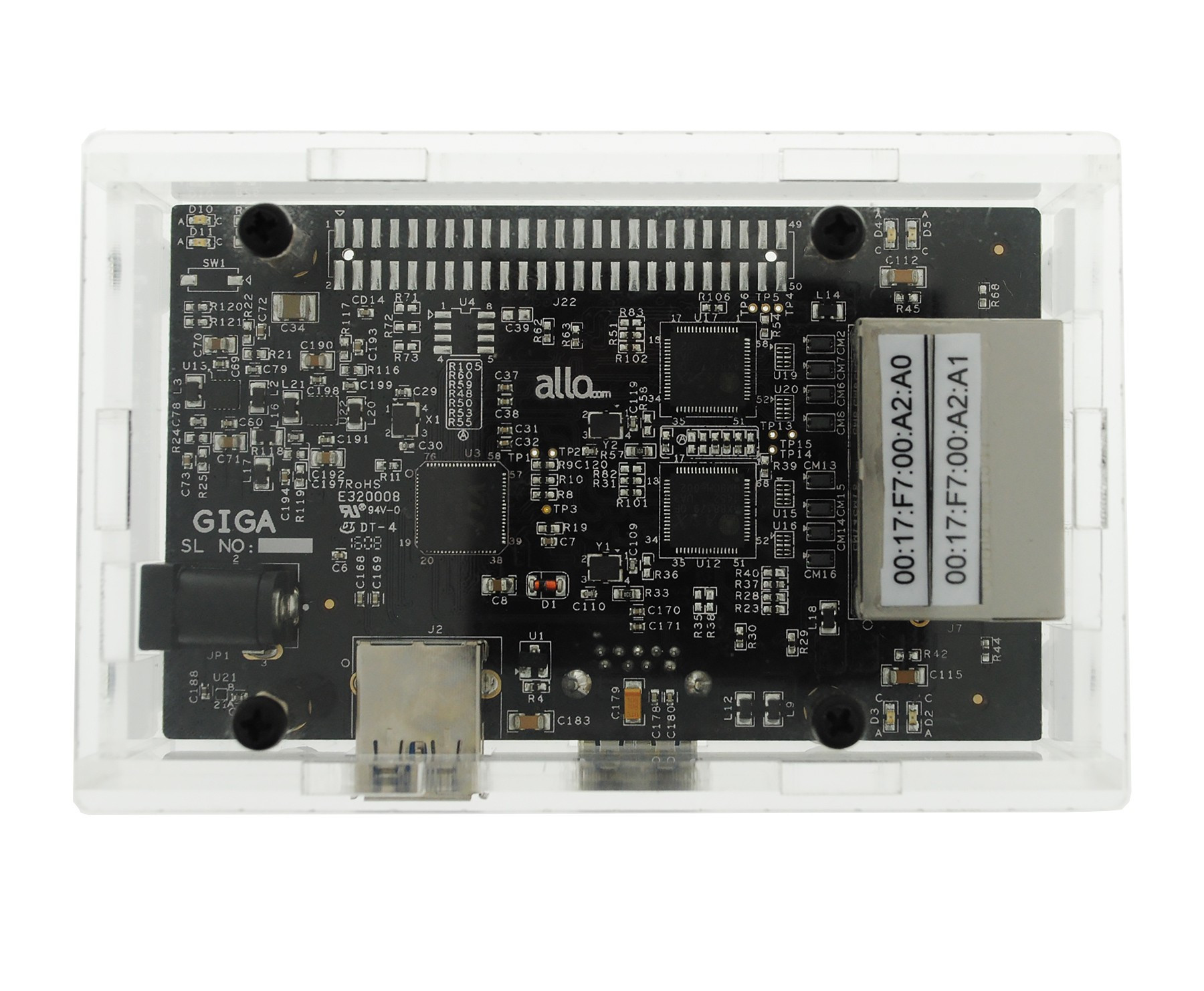

Top View



Top View

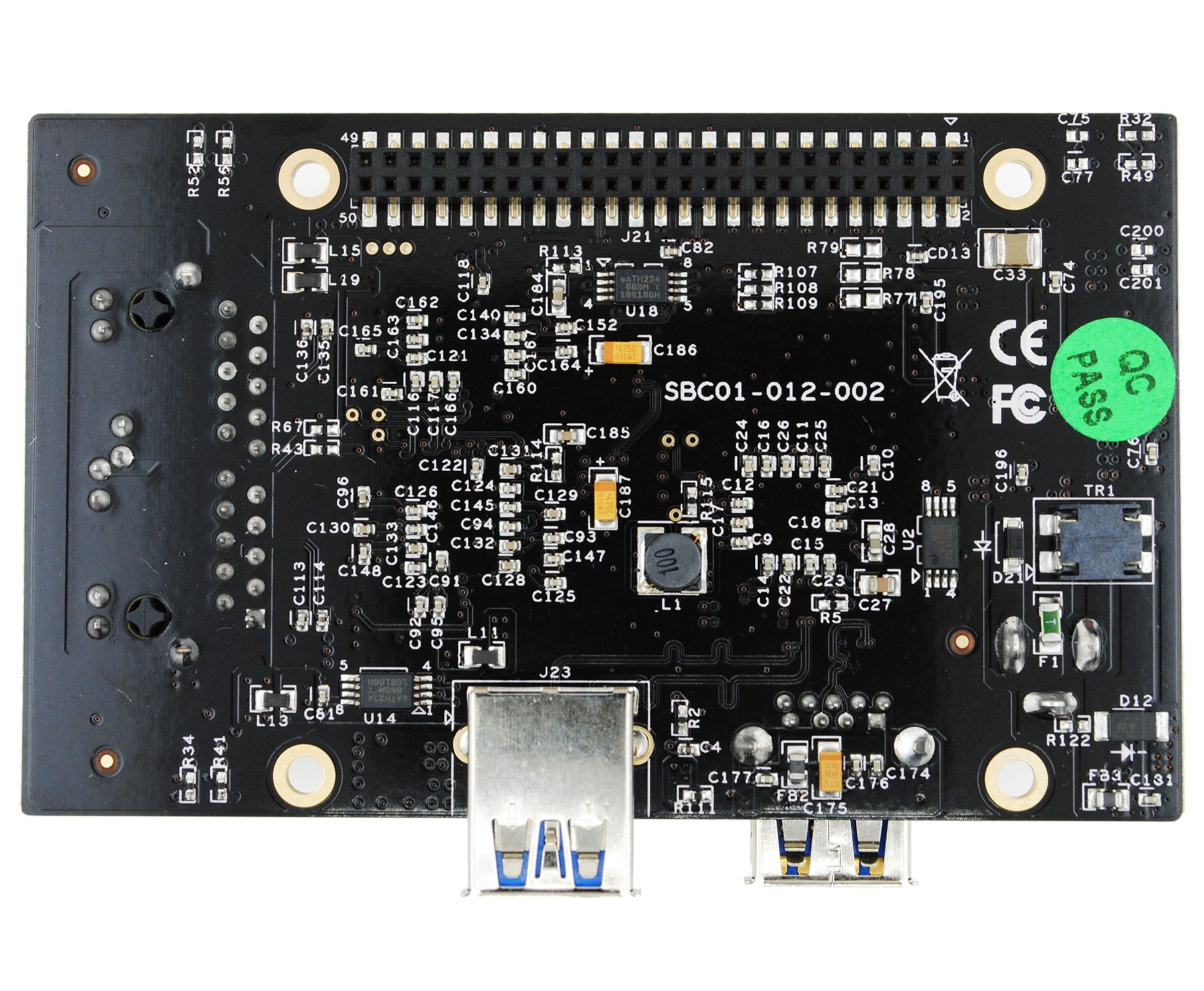

Bottom View



Bottom View

Technical Specifications
Gigabit 10/100/1000Mbps
Ports 2
Input Voltage 5V (from main board)

CLICK HERE FOR AUDIO SUPPORT
(You will be directed to ComputerAudiophile where we have centralized our support center)

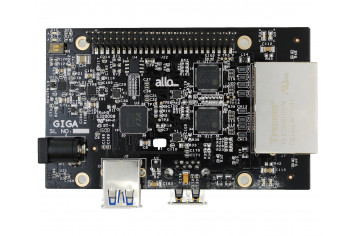

Sparky SBC
Sparky SBC

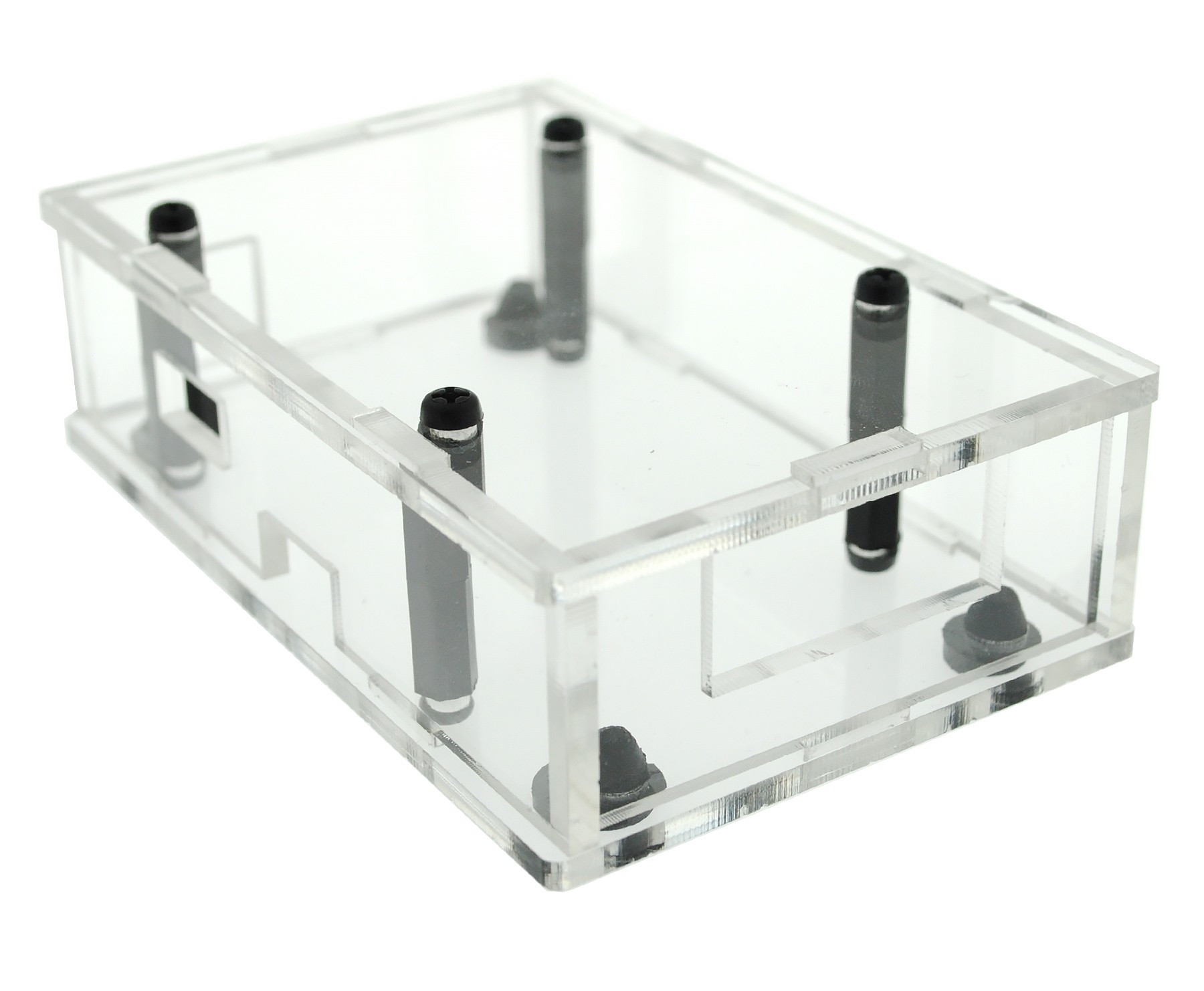

Accessories
