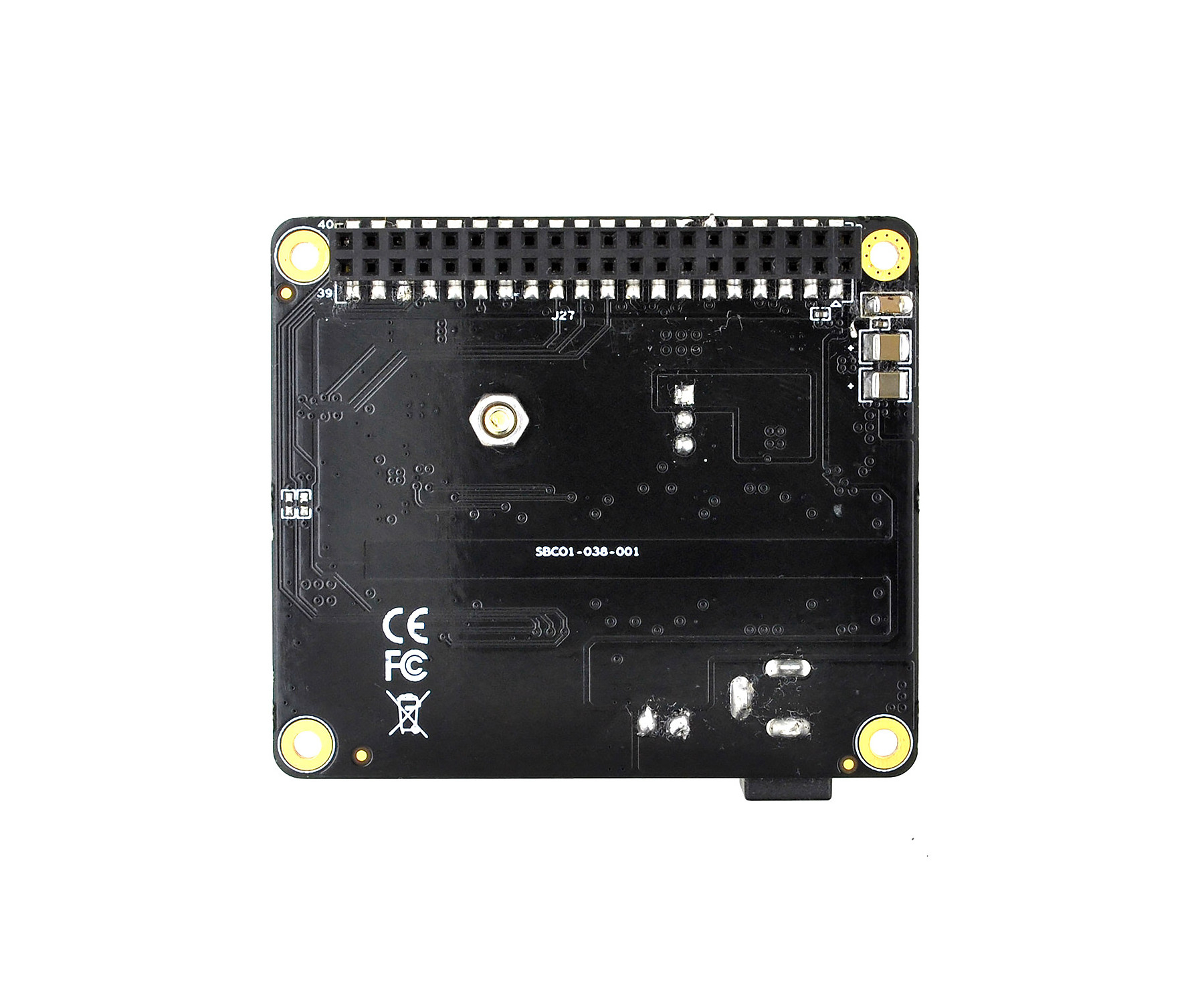

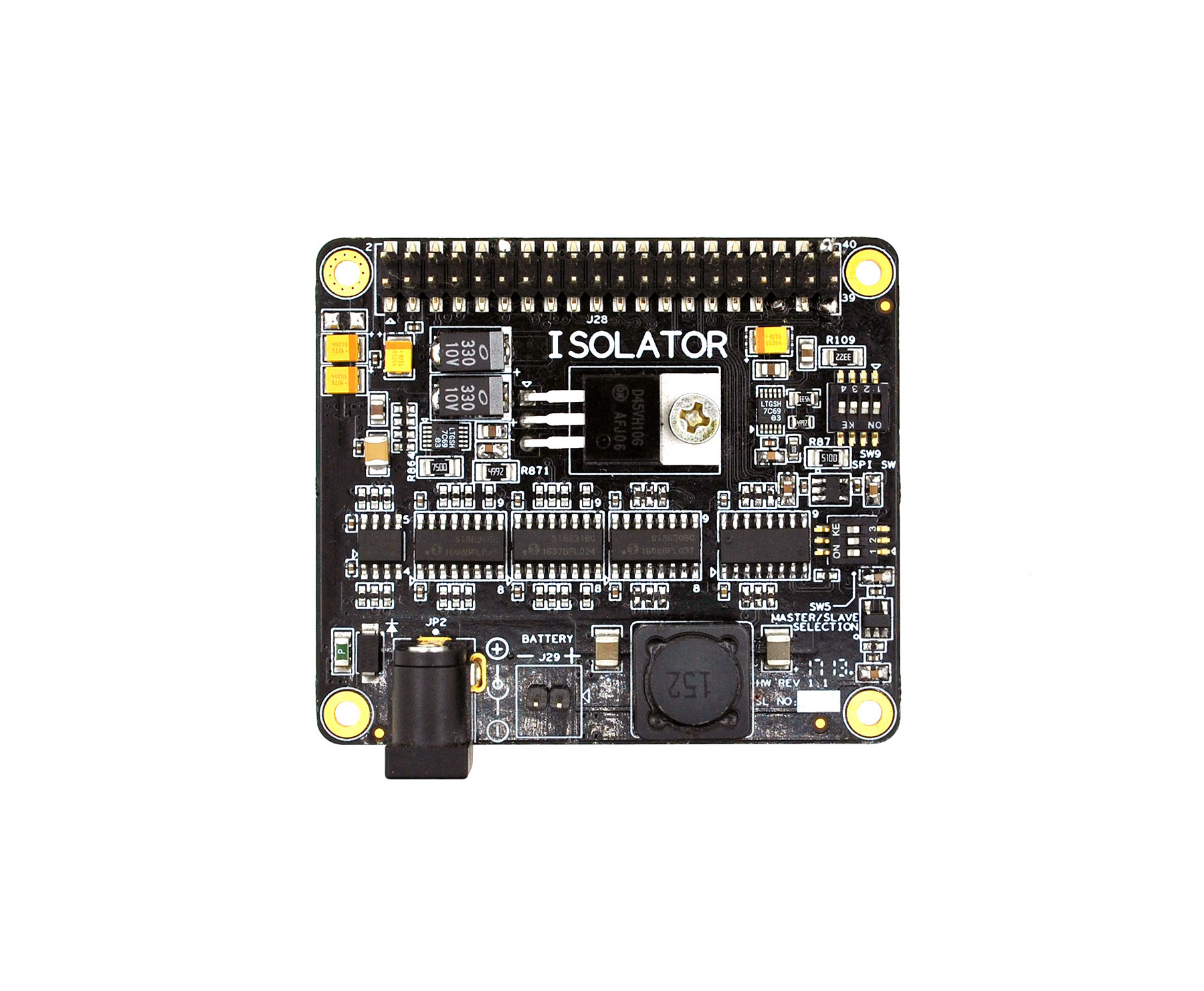

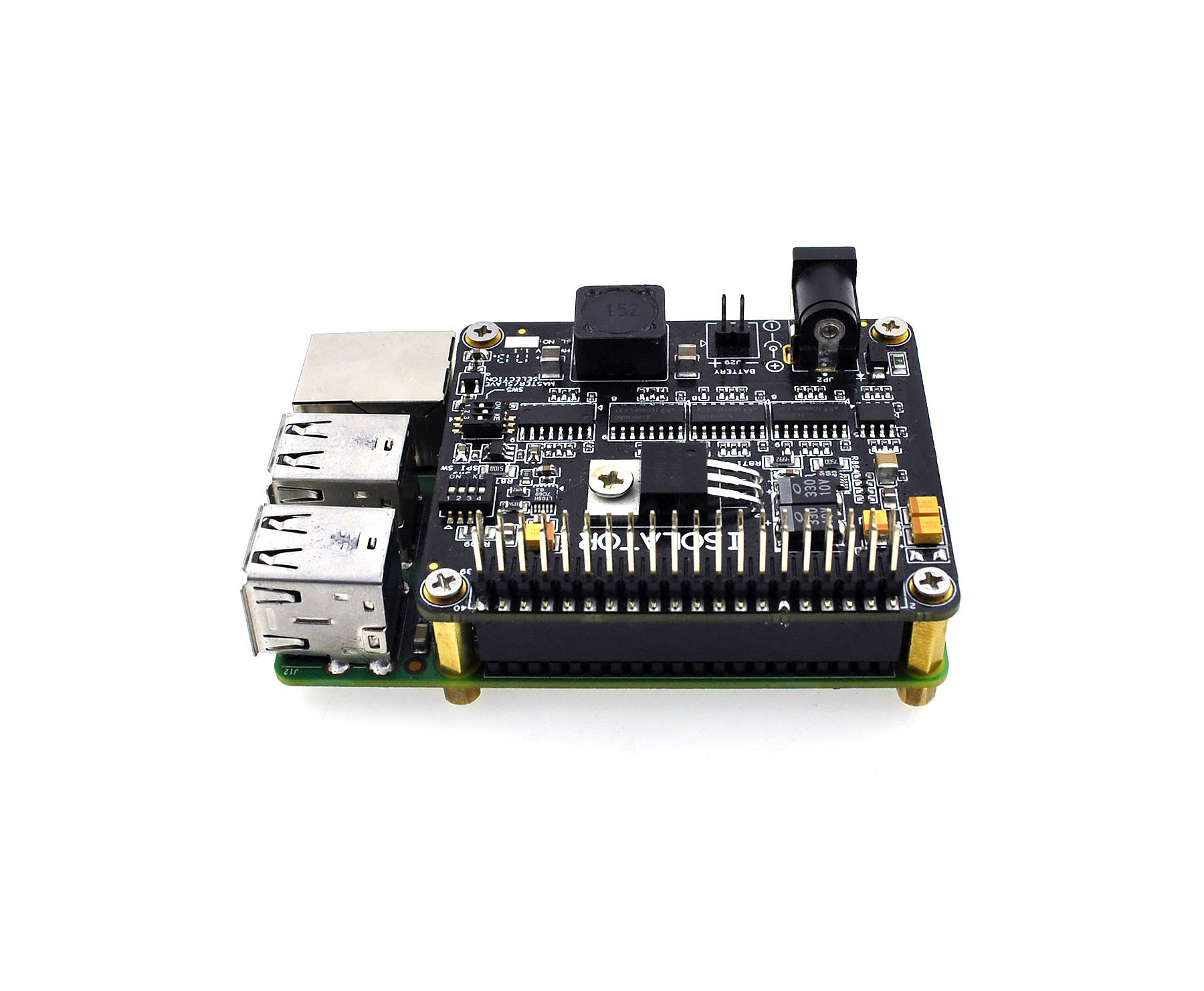

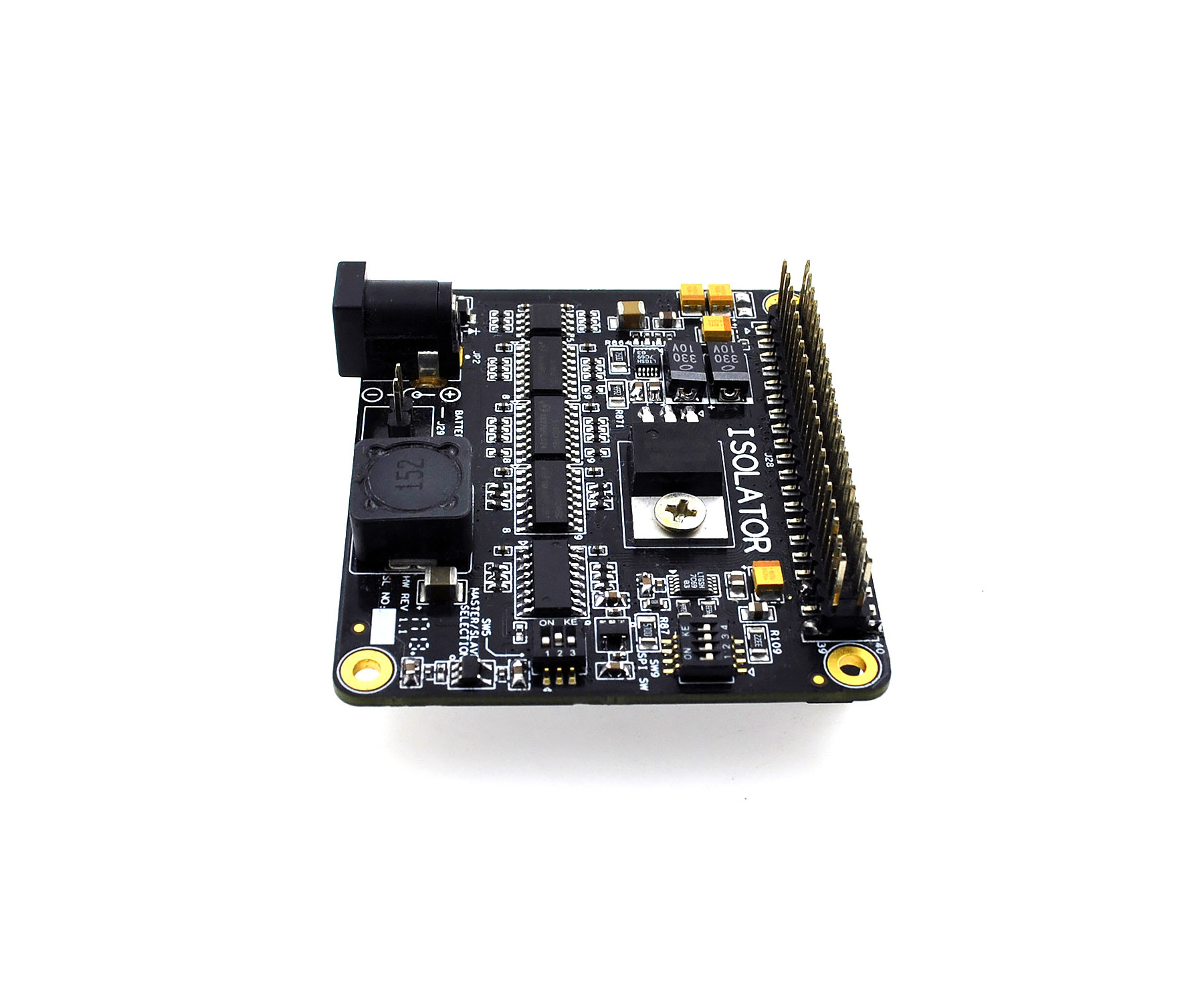

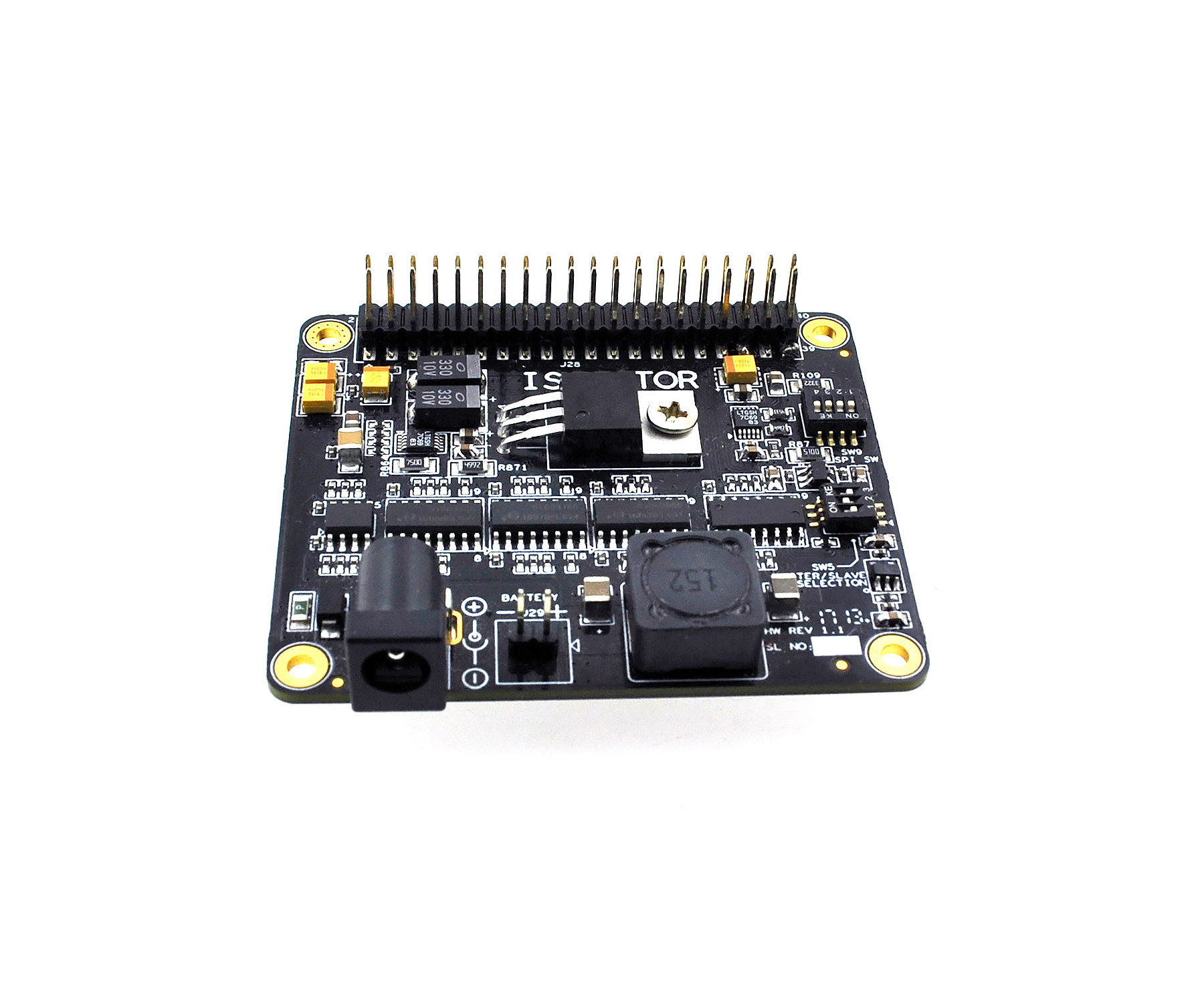

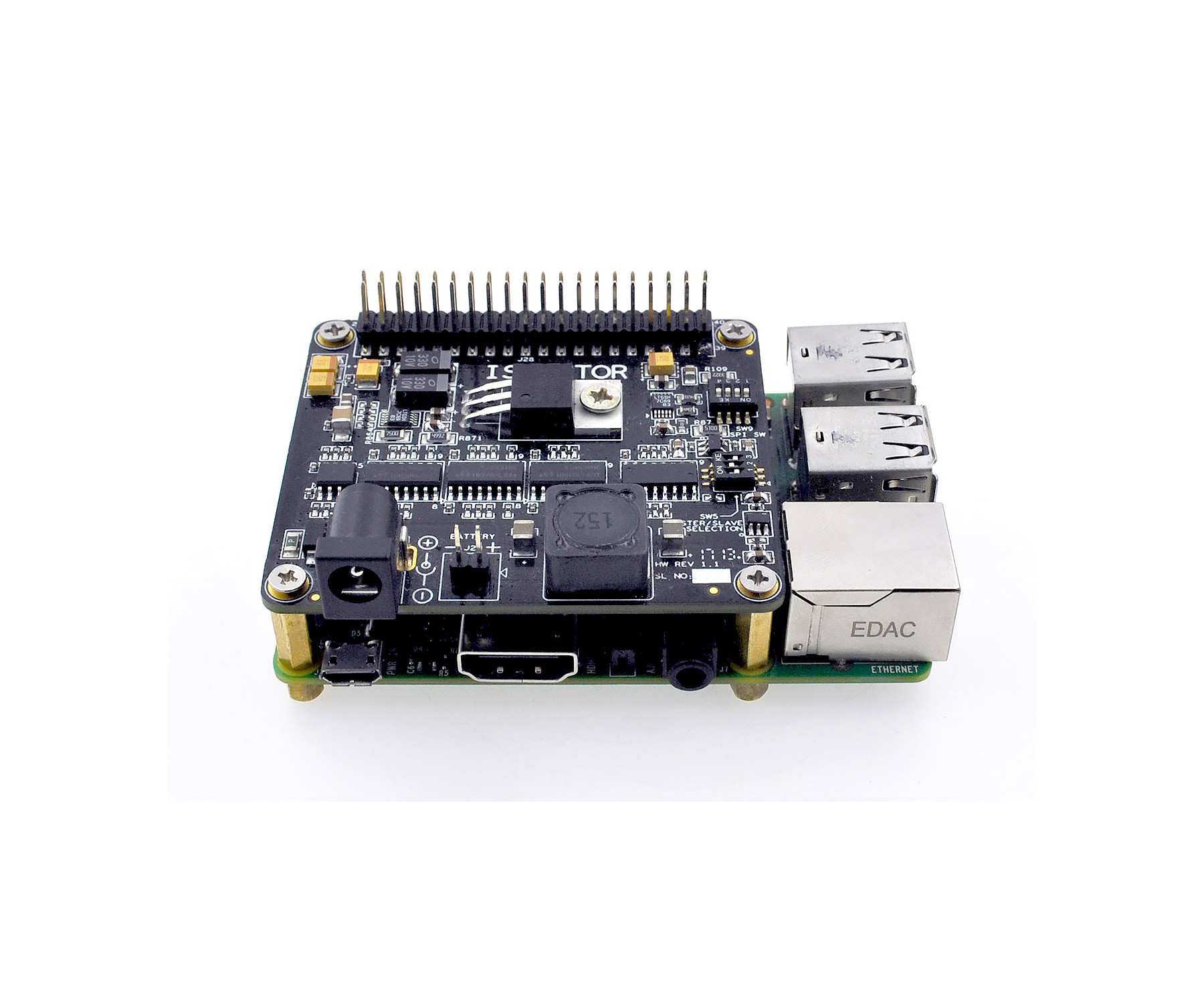

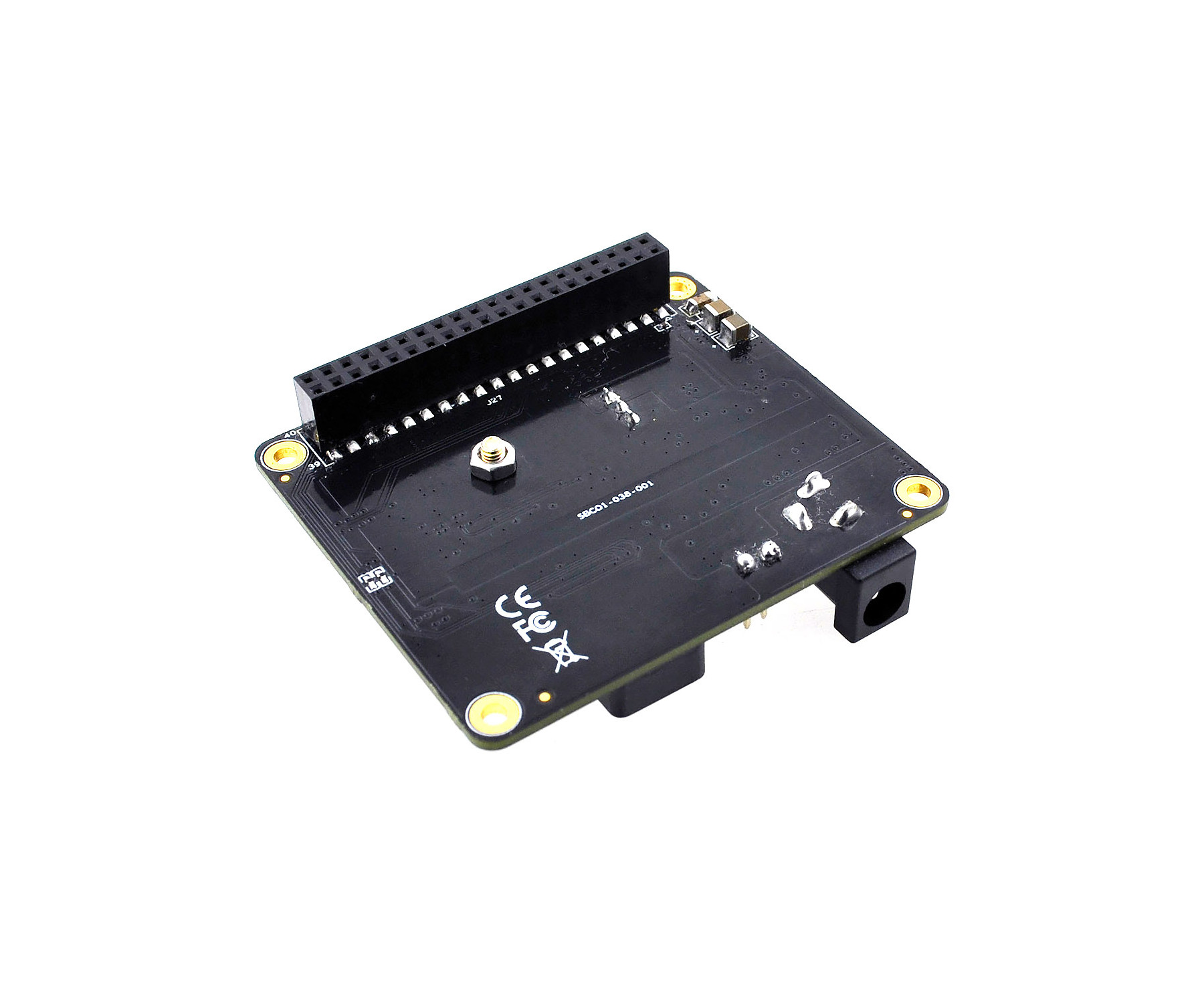

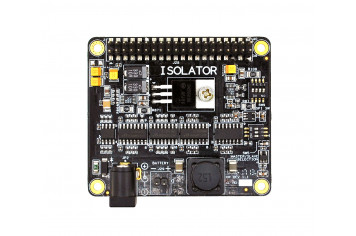

i2s Isolator (EU)


$67.00 USD

Approx. €55 EUR
Items Shipped From EU
No Extra Fees For You

Warranty
1 Year

NOT IN EUROPE? CLICK HERE

Purchase an Acrylic Case
Purchase a Battery Pack
Purchase a Standoff Set

Discounted Pricing
2-4 Units: $63.00 USD / €56 / unit
5 Units: $59.00 USD / €53 / unit

Make 15%-20% Selling This Product

Full galvanic isolator between SBC/DAC.

Unit will work on both master and slave DACs. We have isolated the i2c, gpios.

We recommend to use LIFEPO4 batteries, and the Isolator will in turn provide 5v/0.6A using LT3042 and 3.3V/250mA using LT3042 LDOs.



Compatibility



  • Compatibility: RPI and Sparky, Boss DAC and other DACs (please check manual), Kali
  • PSU: Isolator needs 6.2-12V minimum. We recommend using our battery holder. In return, Isolator will feed power to above stages (like DACs) using the best LDOs in the market LT3042
  • If no power is fed to isolator, then you can feed your isolator from stage above (max 5.5V) either powered DAC or Kali
  • Not Working With: DigiOne (double isolation is not required since DigiOne already has isolation after WM8805/SBC)

DC Connector Details

Features



  • Full galvanic isolator between SBC/DAC
  • Works on both master and slave DACs
  • We have isolated the i2c, gpios
  • We recommend to use LIFEPO4 batteries, and the Isolator will in turn provide 5v/0.6A using LT3042 and 3.3V/250mA using LT3042 LDOs
Technical Specifications
DC Connector Size 2.5mm x 6.5mm
Mating Plug Size 2.5mm x 5.5mm

CLICK HERE FOR AUDIO SUPPORT
(You will be directed to ComputerAudiophile where we have centralized our support center)

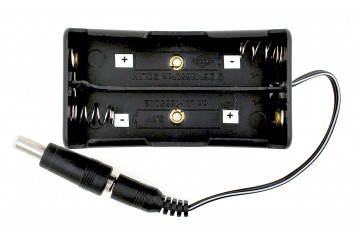

Battery Pack

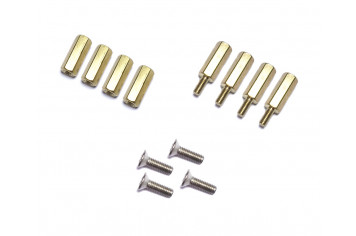

Standoff Set
