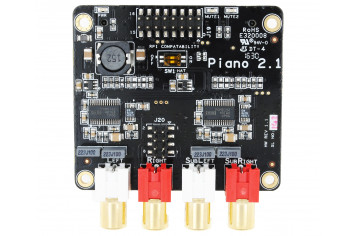

Piano 2.1 DAC (EU) (Subwoofer Out)


$60.00 USD

Approx. €49 EUR
Items Shipped From EU
No Extra Fees For You

Warranty
1 Year

NOT IN EUROPE? CLICK HERE

Purchase an Acrylic Case (for RPi or Sparky)
Purchase a Standoff Set

Discounted Pricing
2-4 Units: $57 USD / €52 / unit
5 Units: $55 USD / €49 / unit

Make 15%-20% Selling This Product



Top Reviews

TheArtofSound.net
"First of all I can see why it's been called the Piano..."

Rataks.com
"ALLO has done a very good job with its devices. The build quality seems very good."

Roonlabs.com
"Set-up of the system was fast and easy – 10 minutes and I got stylish open-work design on my home-office table..."




Piano can work as a 2.0 (all frequencies are passed to LR) as a 2.2 (xover frequency is chosen in GUI) and subwoofer has 2 outputs or as a 2.1 (same as 2.2 but subwoofer is mono).

We are using 2 DAC Ic's PCM5142 with integrated DSP. The PurePath software from TI is available for download (registration required) and can be used to create specific filters and other audio functions.

The board will come pre-programed as a 2.1 output (but you can create your own custom design and load it the board and can access the xover frequency directly from linux (we made a small app).

Hardware wise, we have split the digital and analog side with LDOs and we feed the analog side using an extremely capable LDO LT3042 which is having ultra low noise and ultra high PSRR.. Basically each board has 4 LDO (2 for each DAC ic) (note that digital side uses cheaper LDOs).

Of course, on the analog side we used only thin film resistors and poly caps in audiopath.

Features

HAT Size Not HAT Compliant
  • Piano 2.1 is a Slave DAC (Slave DACs are compatible with Sparky or Kali)
  • Dedicated two No’s of 384 kHz/32bit high-quality DAC PCM5142 for best sound quality
  • Available with different output connectors: 4 x RCA
  • DAC SNR is 112dB
  • DAC THD+N @ - 1dBFS are –93dB
  • Full Scale Output of DAC is 2.1Vrms
  • Dynamic Range of DAC is 112dB
  • Sampling Frequency ranges from 8 kHz to 384 kHz. (Sample rate is limited to 192kHz, for subwoofer modes - 2.1 & 2.2)
  • Ultra-low-noise voltage regulators for optimal audio performance
  • Integrated EEPROM for automatic configuration (with write-protection)
  • Compatible with OSMC / Max2Play / RuneAudio / Volumio / Moode / PiCorePlayer / PiMusicBox / OpenELEC and others + Roon Ready

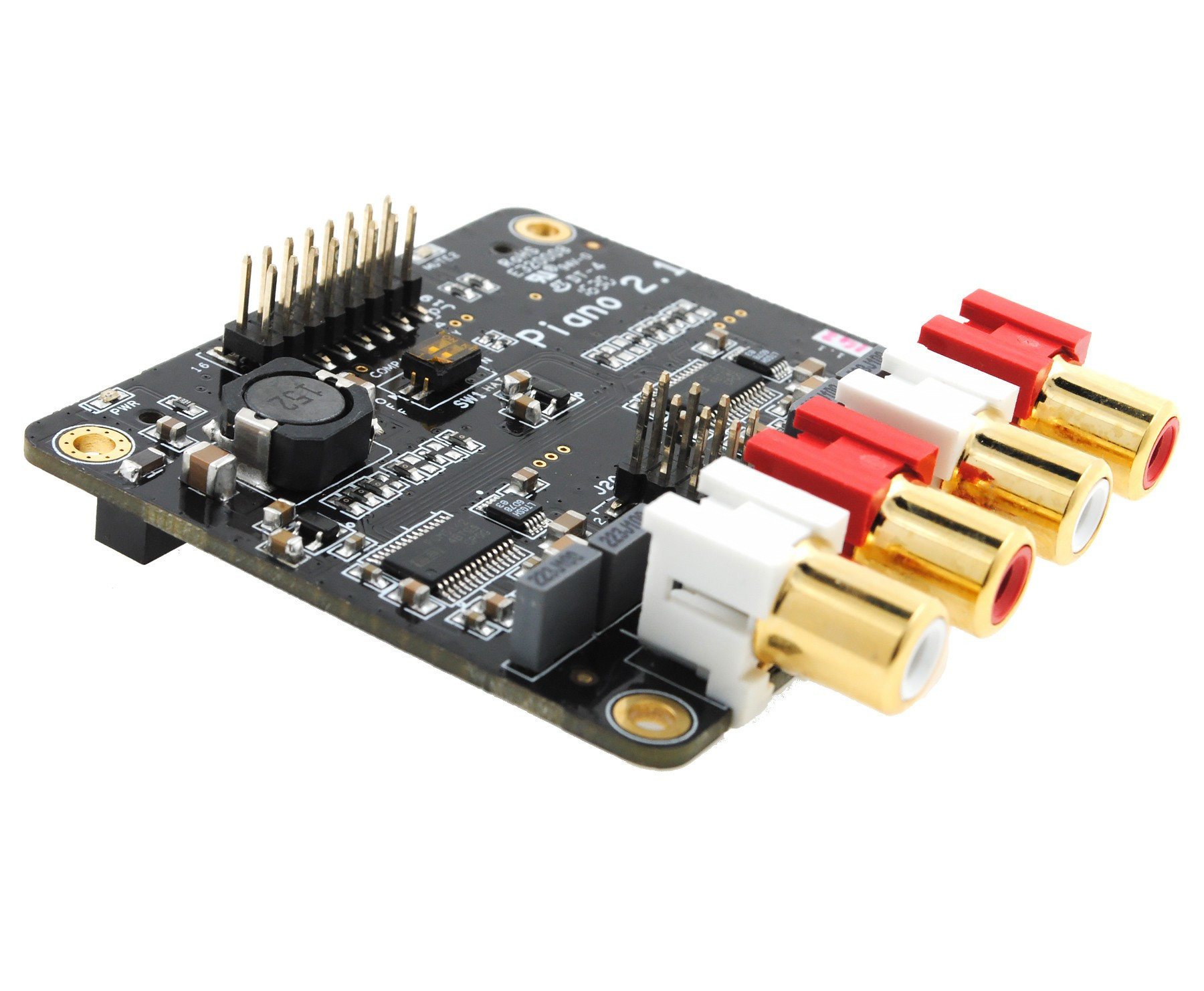

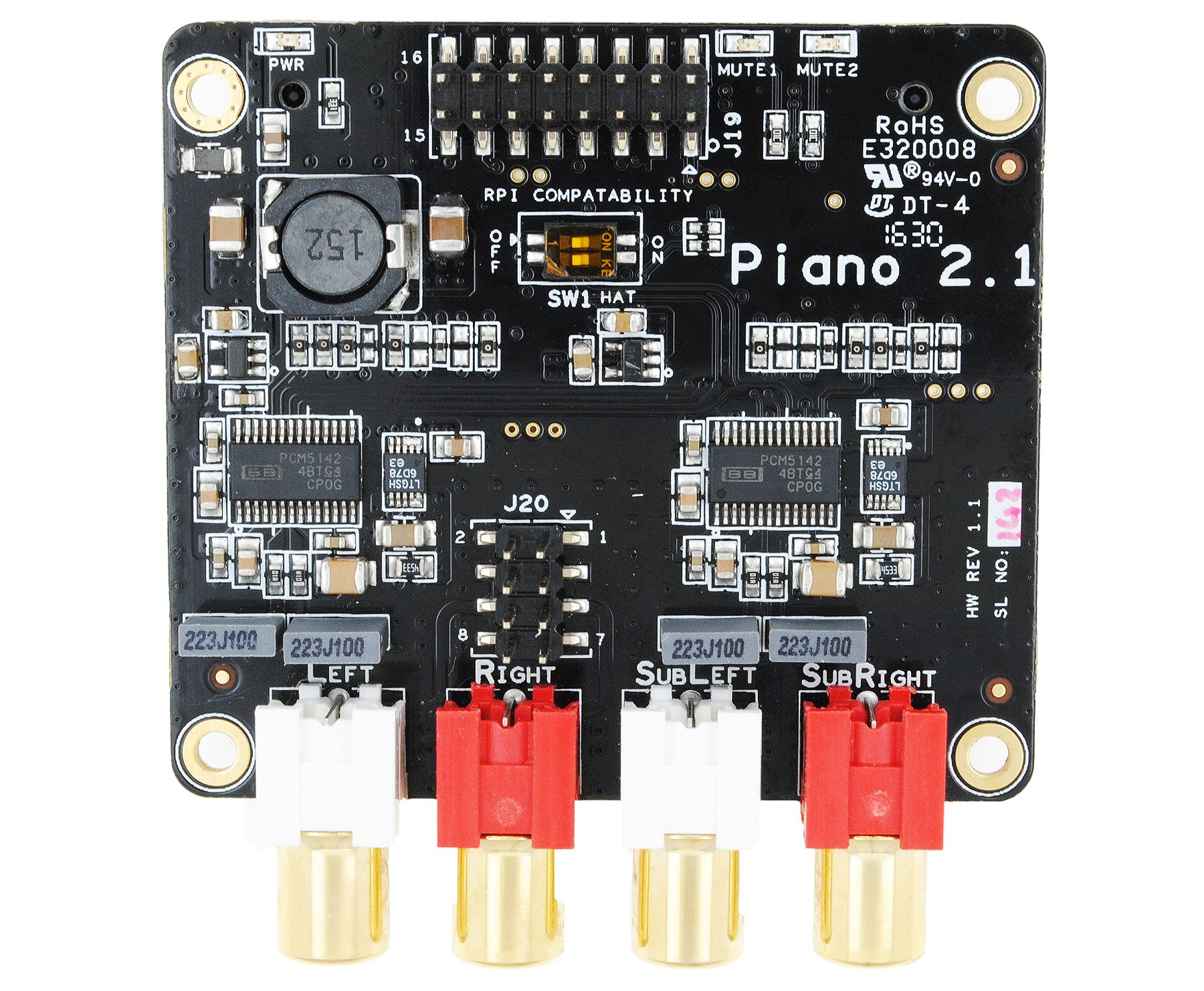

Top View

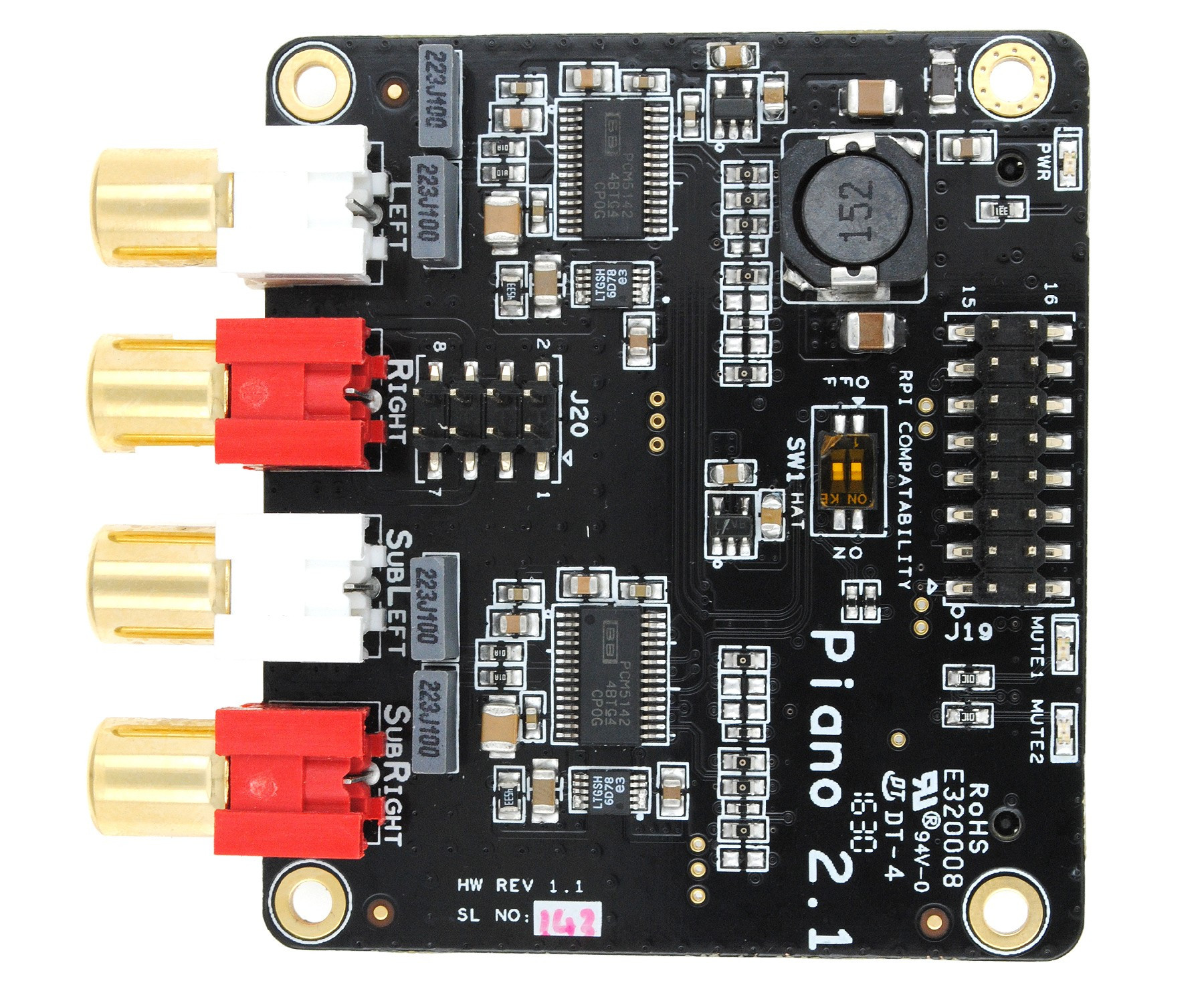

Top View

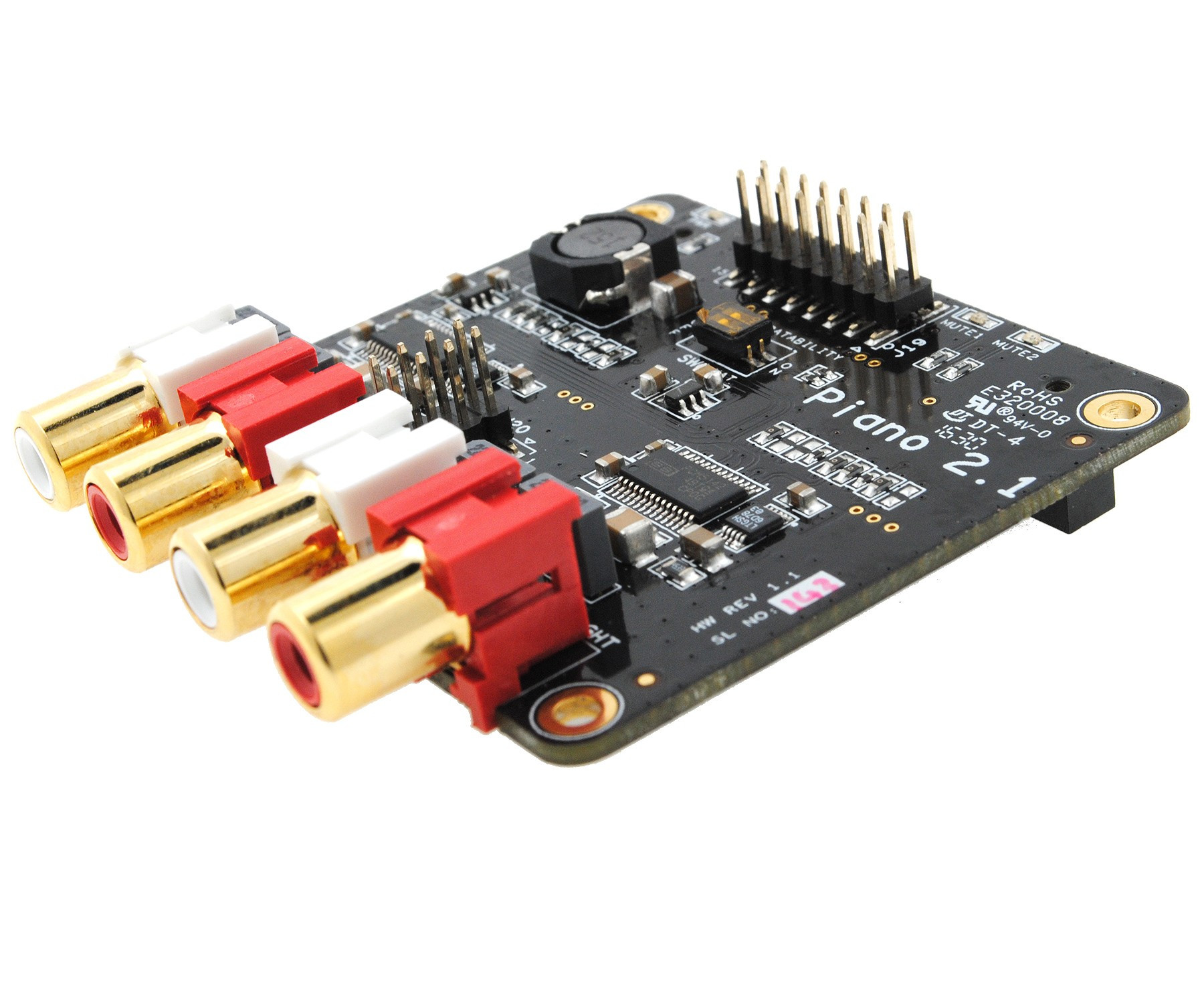

Bottom View

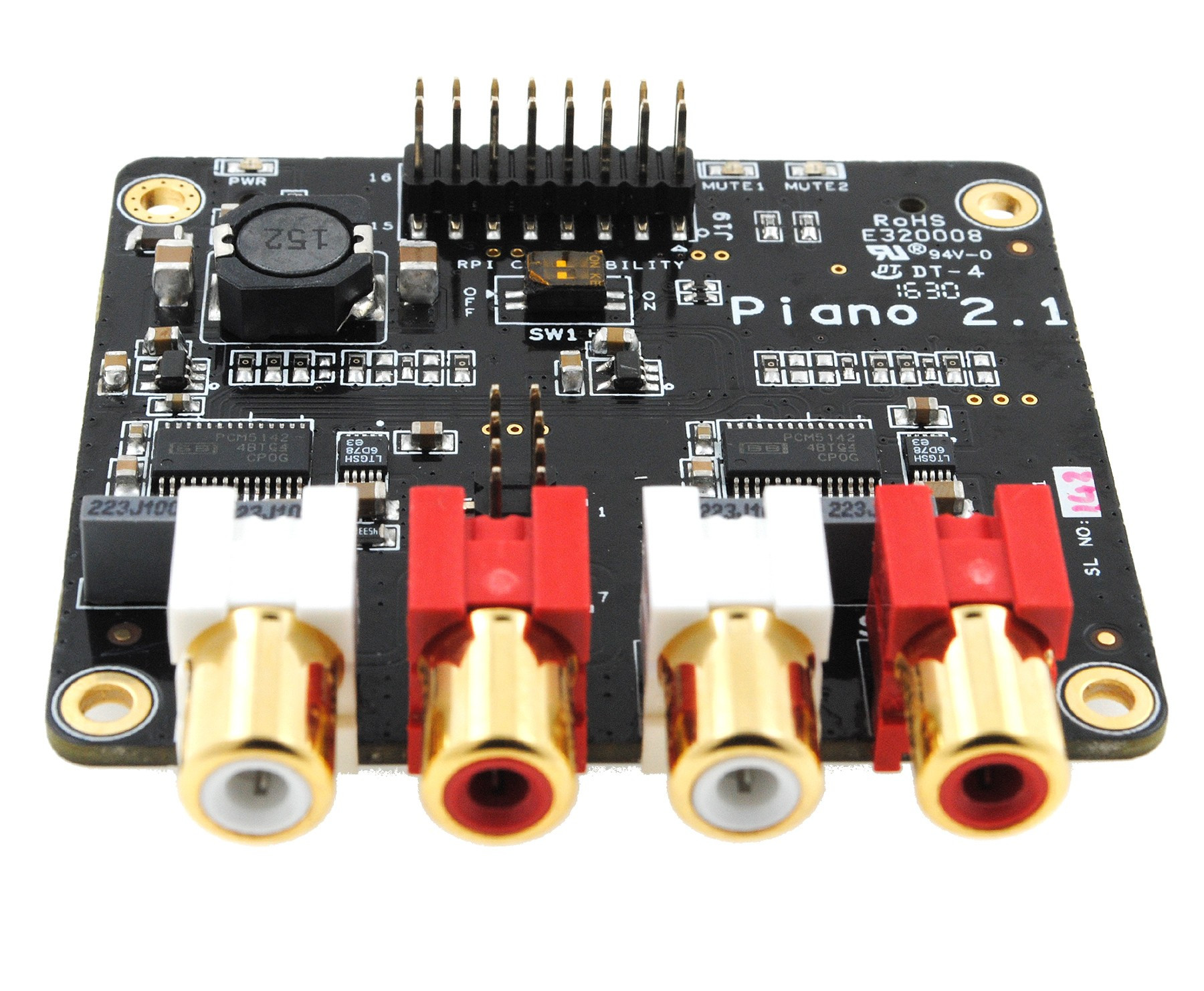

Bottom View



flow of purepath in Piano 2.1

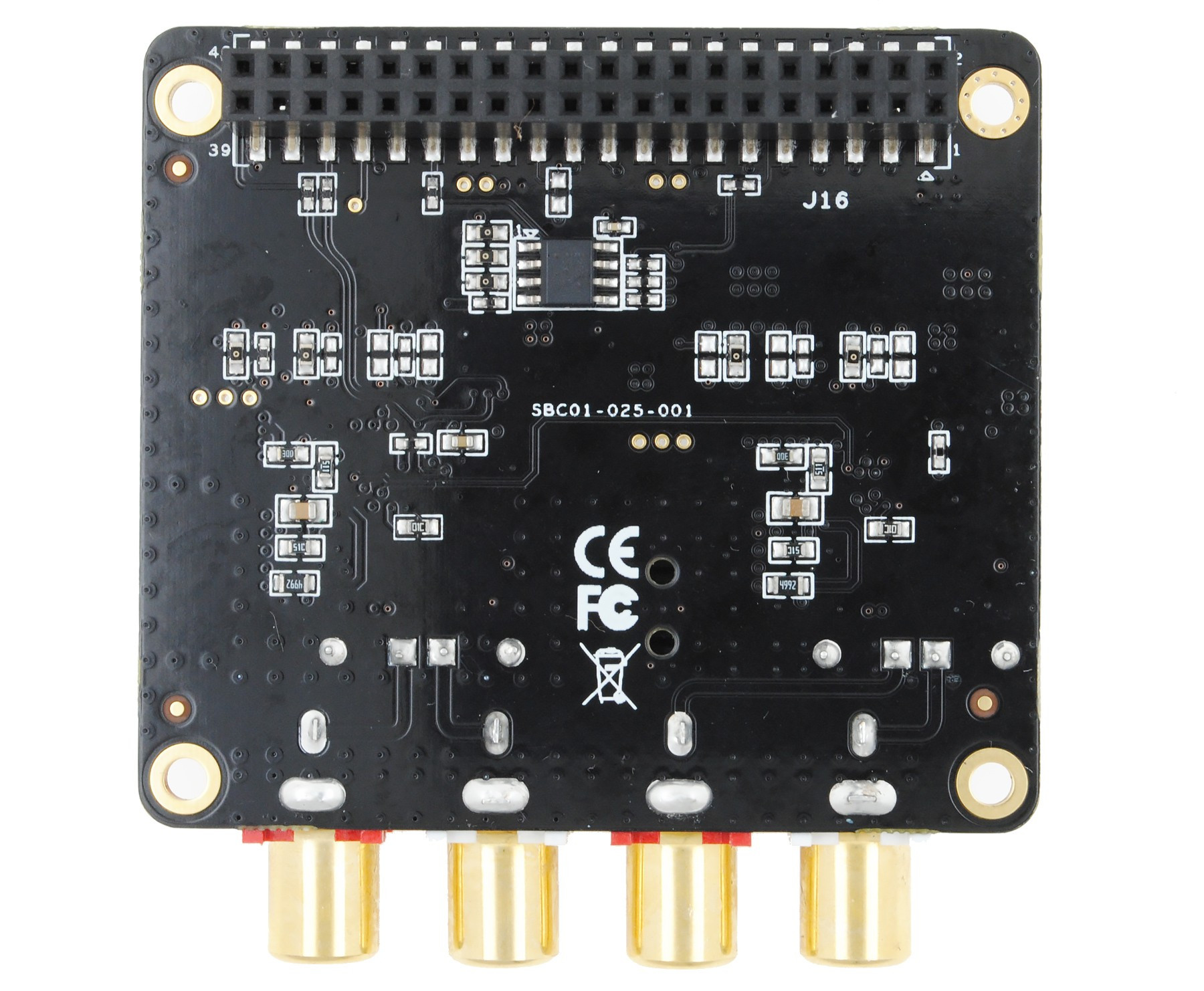

Bottom View
*Click to open full view photo (download full PDF document)

Technical Specifications
Operating Temperature 0C to 70C
Board Size LWH = 68.7mm * 65mm * 22.2mm
Board Weight 30g
