Sparky SBC (Motherboard)

$24.00

Warranty
1 Year

IN EUROPE? CLICK HERE

Important Note: For WiFi connectivity, we suggest using our WiFi dongle (driver has been fully tested).

Sparky Single Board Computer (SBC) is a credit card-sized board that can be used as a standalone computer, in electronics projects, games, and also in many other applications. A true open hardware, community-supported embedded computer for developers and hobbyists. The Sparky SBC has all the functionality of a basic computer.

Sparky is a highly integrated SBC, based on ARM application processor. The Sparky SBC currently supports Linux and Android operating system. It is the best choice for developing customized products as it provides an open, strong and friendly system development platform. Some of the applications are Internet Of Things (IoT), Tablet, Smart TV, Net Book, Game Console, POS machine etc.

Sparky also provides the flexibility to use any of the Raspberry PI add-on boards currently available. we also offer the following add-on boards, like Piano DAC, Volt AMP, Cheapo, GIGA dual Ethernet, Analog Telecom Shield and GSM Gateway.

With over a decade of embedding experience, our team is constantly helping application developers to port their new and exciting software to our Sparky SBC.

Features

  • CPU: ARM Cortex A9 Quad Core Processor at 1.1GHz
  • RAM: 1 GB DDR3L RAM
  • Display: HDMI, MIPI
  • 1080p@60fps HD decoding capability
  • USB 3.0 on OTG, USB 2.0
  • Expansion Shields ready (Piano DAC, Piano 2.1 DAC, Volt, Kali, Cheapo, GIGA, LCD, eMMC, etc.)
  • Ethernet: On board Single Ethernet port 10/100Mbps
  • Ethernet: On board Single Ethernet port 10/100Mbps
  • External Storage: Micro SD up to 32GB and eMMC slot up to 64GB for storing information and loading operating systems
  • Connector: 40 pin connector (Raspberry Pi compatible) to enhance your “real world” projects or connect the shields
  • 50 Pin Telecom Connector
  • Power: The board uses up to 10W of power and can be powered from the USB connector, or a separate 3.7V / 3500mAh battery power supply
  • Supports Linux & Android
  • For WiFi connectivity, we suggest using our WiFi dongle (driver has been fully tested).

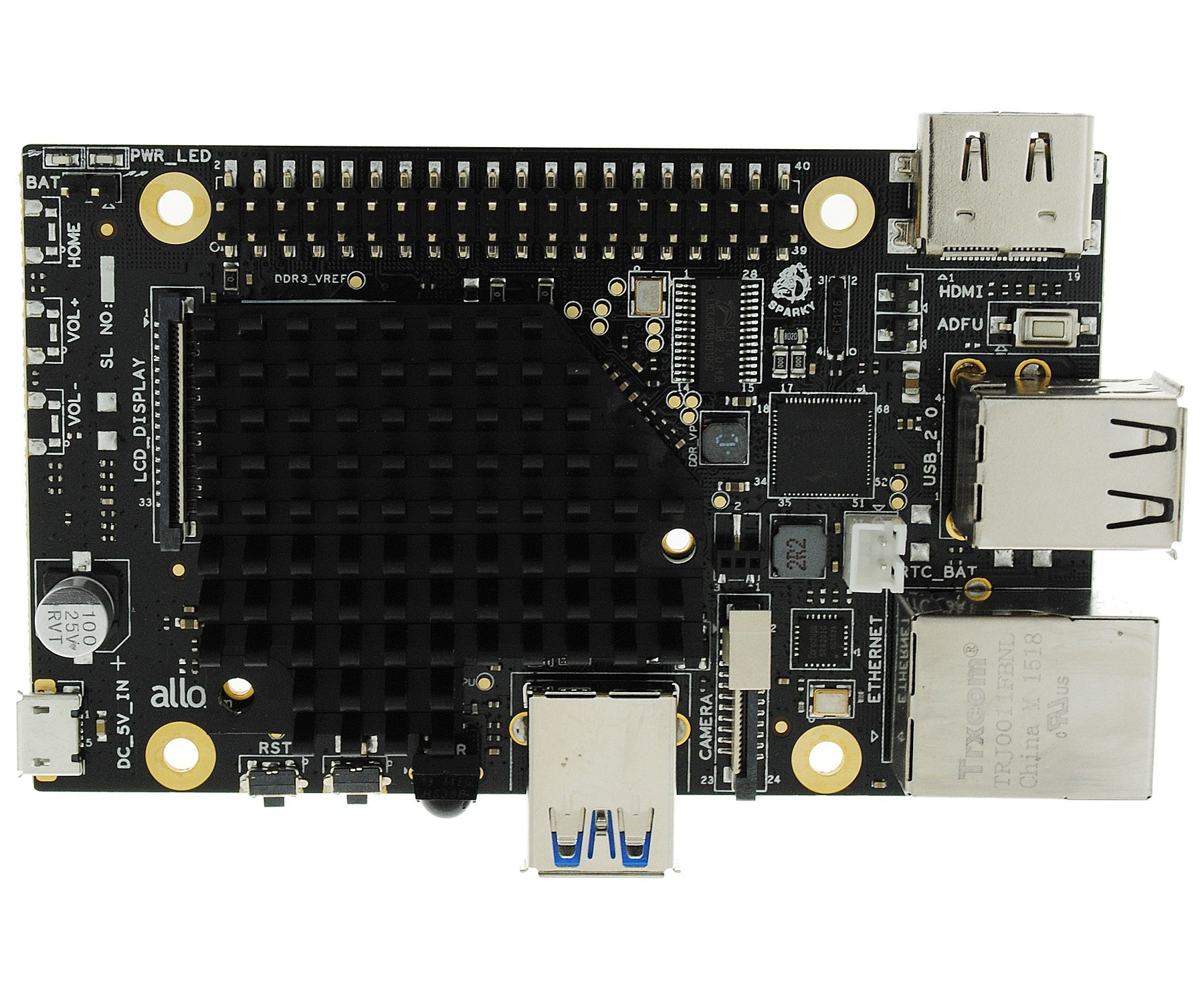

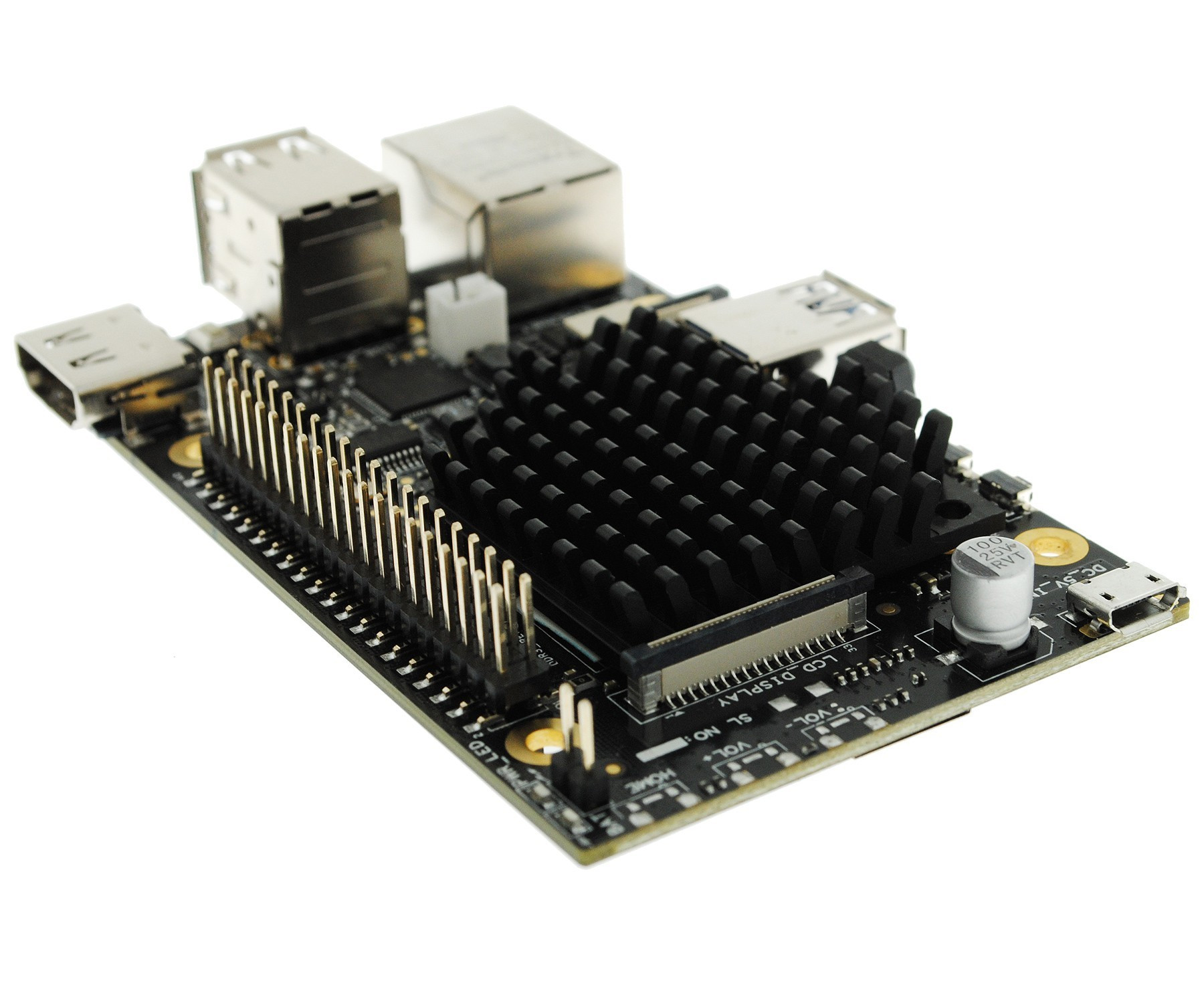

Top View

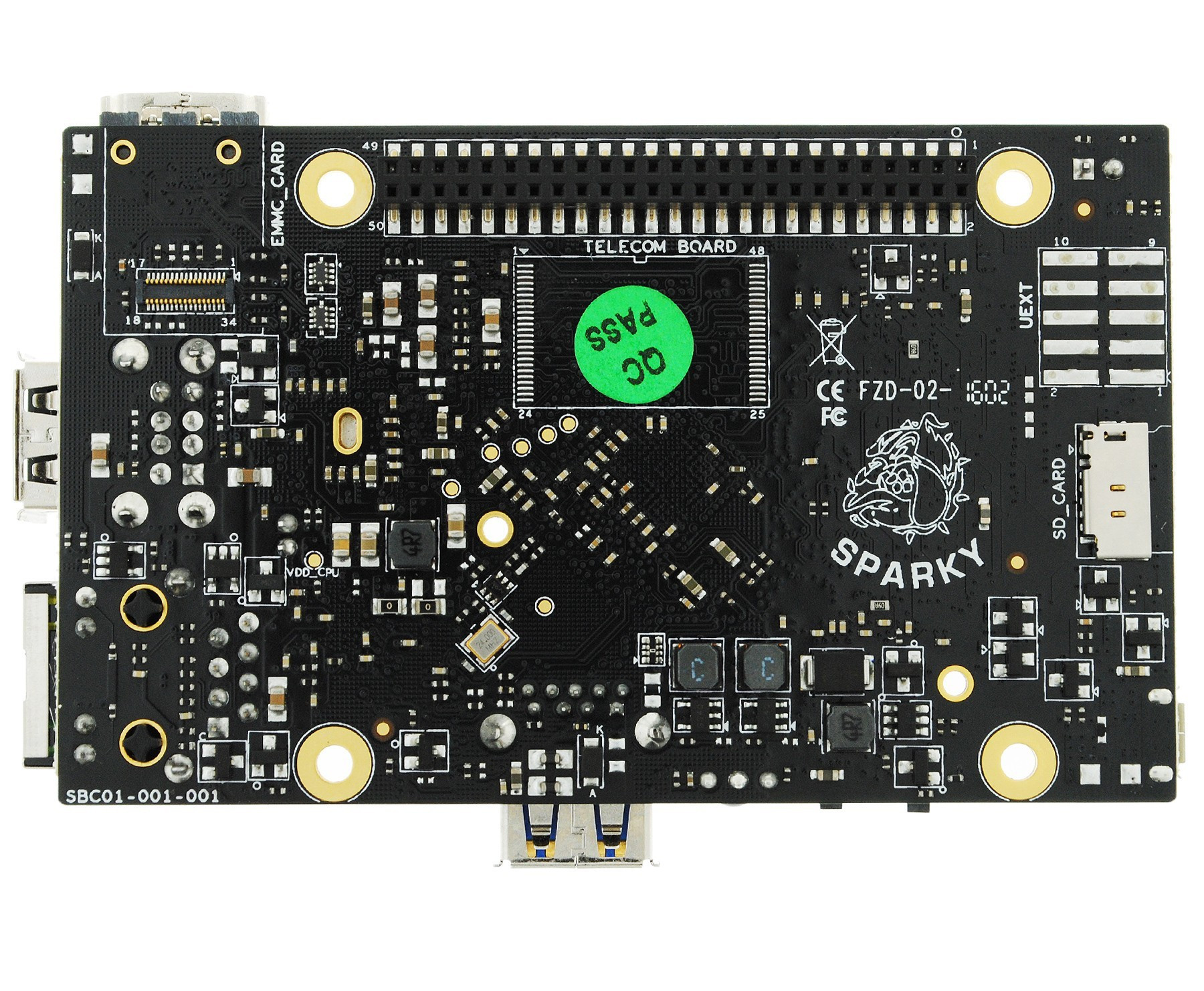

Bottom View

Components

(click to enlarge)

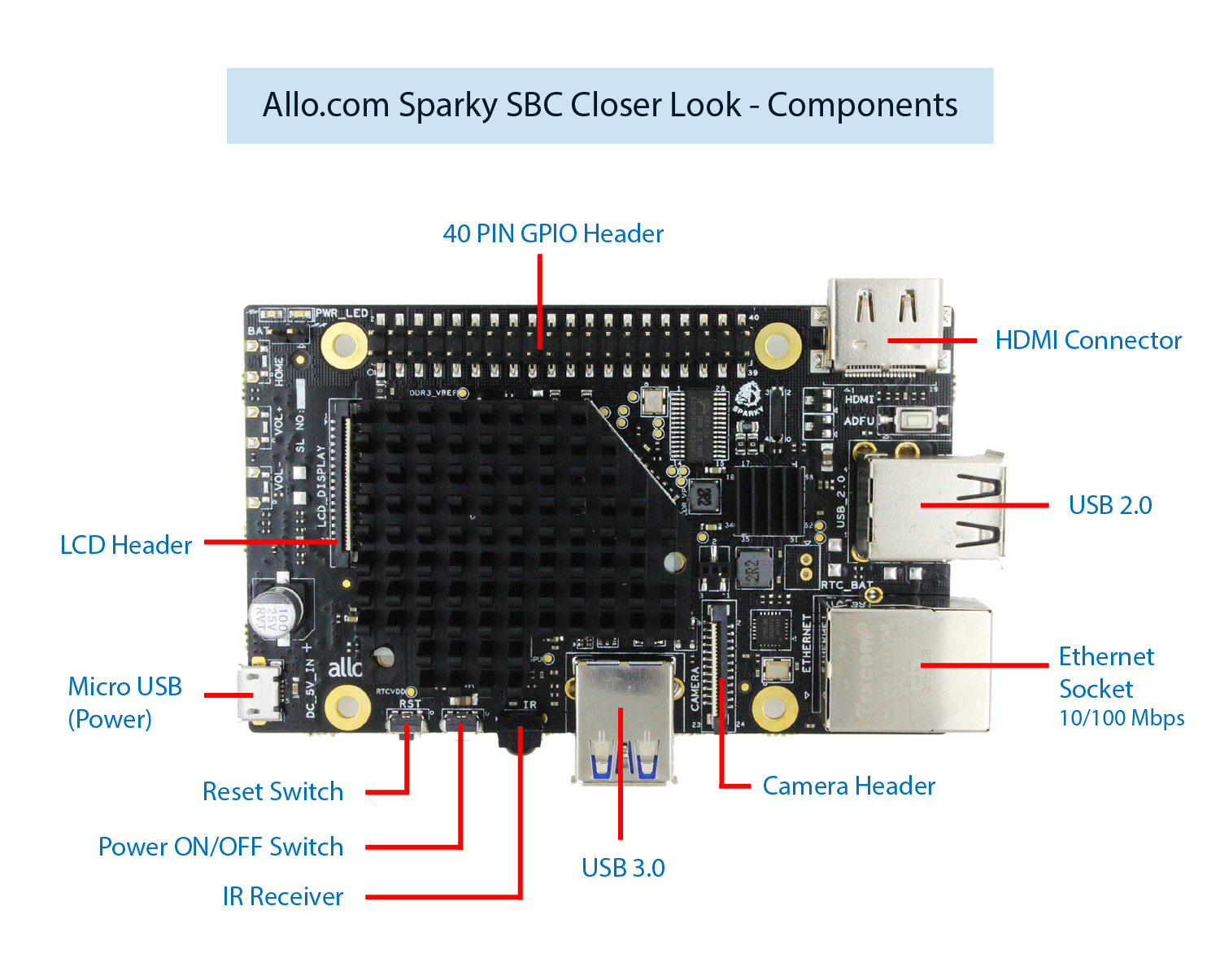

Sparky SBC Closer Look Components - Top View

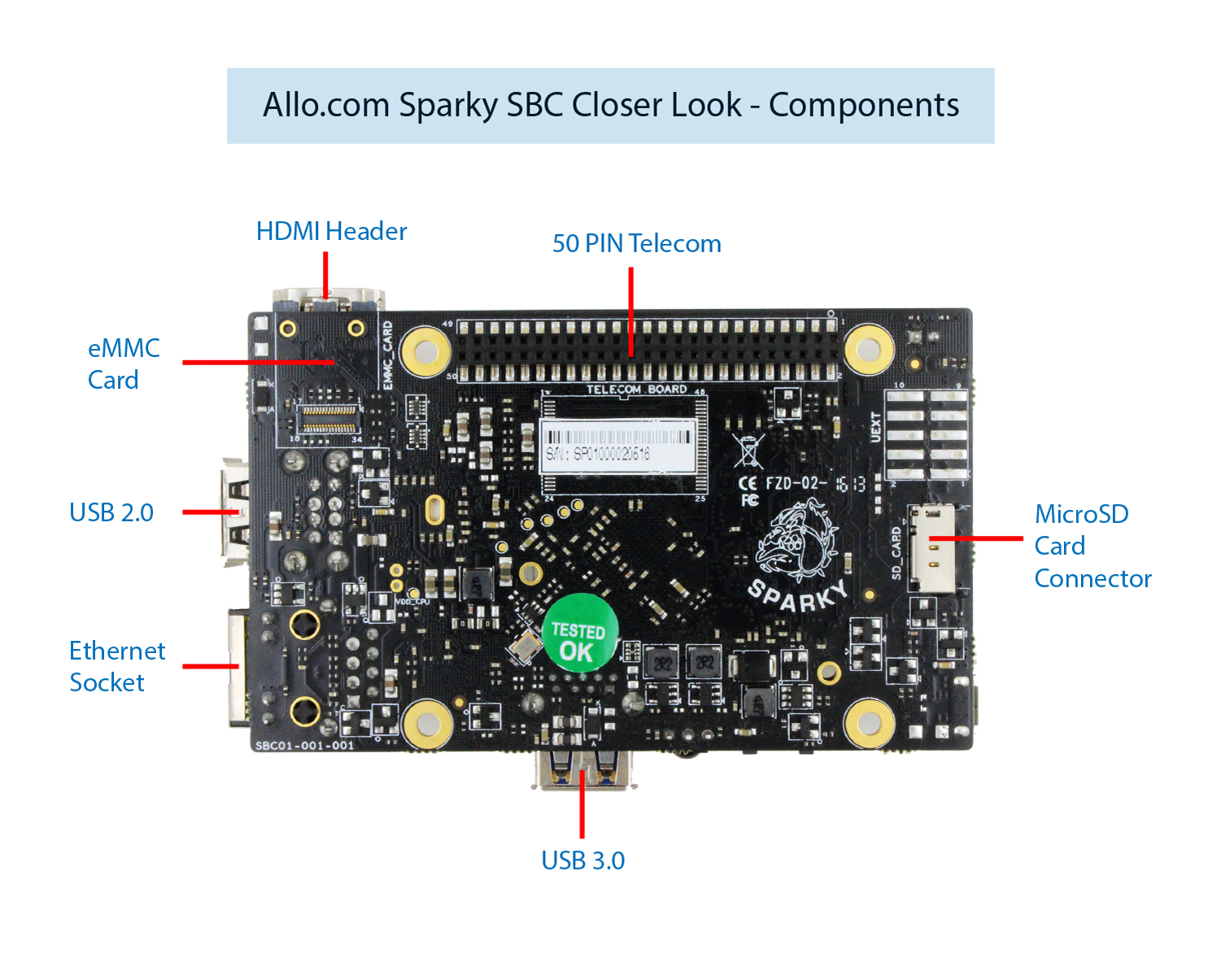

Sparky SBC Closer Look Components - Bottom View

Technical Specifications
CPU ARM Cortex A9 Quad Core Processor at 1.1GHz
Ethernet 1 port fast ethernet, 10/100 Mbits
HDMI 1 port
eMMC Supports 8/16/32/64 Gigabyte Module (Plugable)
uSD Supports 8/16/32 Gigabyte Module
DDR 1GB, 2GB (optional) Memory support
RPI On board 40 Pin Raspberry PI card connector
USB 2.0 2 Port Host
USB 3.0 1 Port USB (OTG) Host
GPU PowerVR SGX544, 500Mhz
Display Resolution 1080p @ 60fps
Uext Uext connector board (optional)
IR 1 port infrared interface
LCD 34 Pin LCD connector
Camera 24 pin 5Mpixel Camera interface
NAND Flash Optional
Power microUSB 5V 2A
Telecom Connector 50 Pin Telecom Connector
Operating Temperature 0 to 70°C
Board Size LWH = 95mm * 58mm * 16mm
Board Weight 49g
Operating System Support Linux
Android
Supported Software Max2Play
Volumio
Shields

One of the main advantages of SPARKY are the add-on boards also called Shields that can convert SPARKY into a finished ready to use finished product.


*Only Piano DAC is HAT compliant.

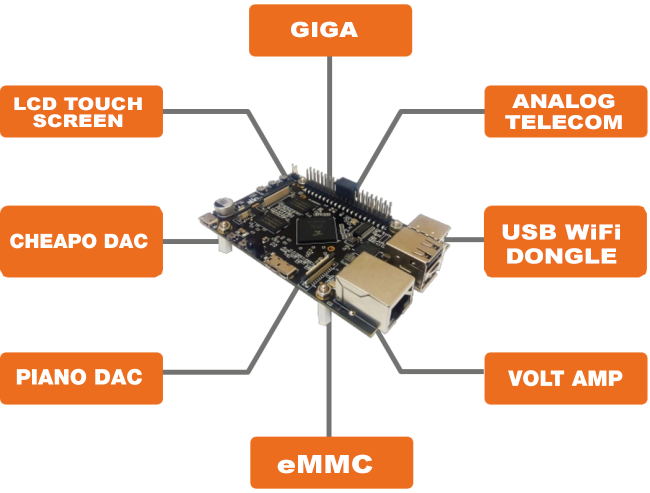

Sparky Shields Networking Shield (USB/Ethernet Hub) Volt AMP Piano DAC Analog Telecom Board USB WiFi Dongle LCD Screen eMMC

CLICK HERE FOR AUDIO SUPPORT
(You will be directed to ComputerAudiophile where we have centralized our support center)

Kali + Piano 2.1 + Volt
Kali + Piano 2.1 + Volt
Kali + Piano 2.1
Kali + Piano 2.1
Accessories
Accessories
Power Supply
Power Adapter
Standoff Set
Standoff Set
