Analog Telecom (Bridge the FXO/FXS Ports to IP)

Price: Price:
Coming Soon

Warranty
1 Year

IN EUROPE? CLICK HERE

Click hereRelease Date: To Be Announced

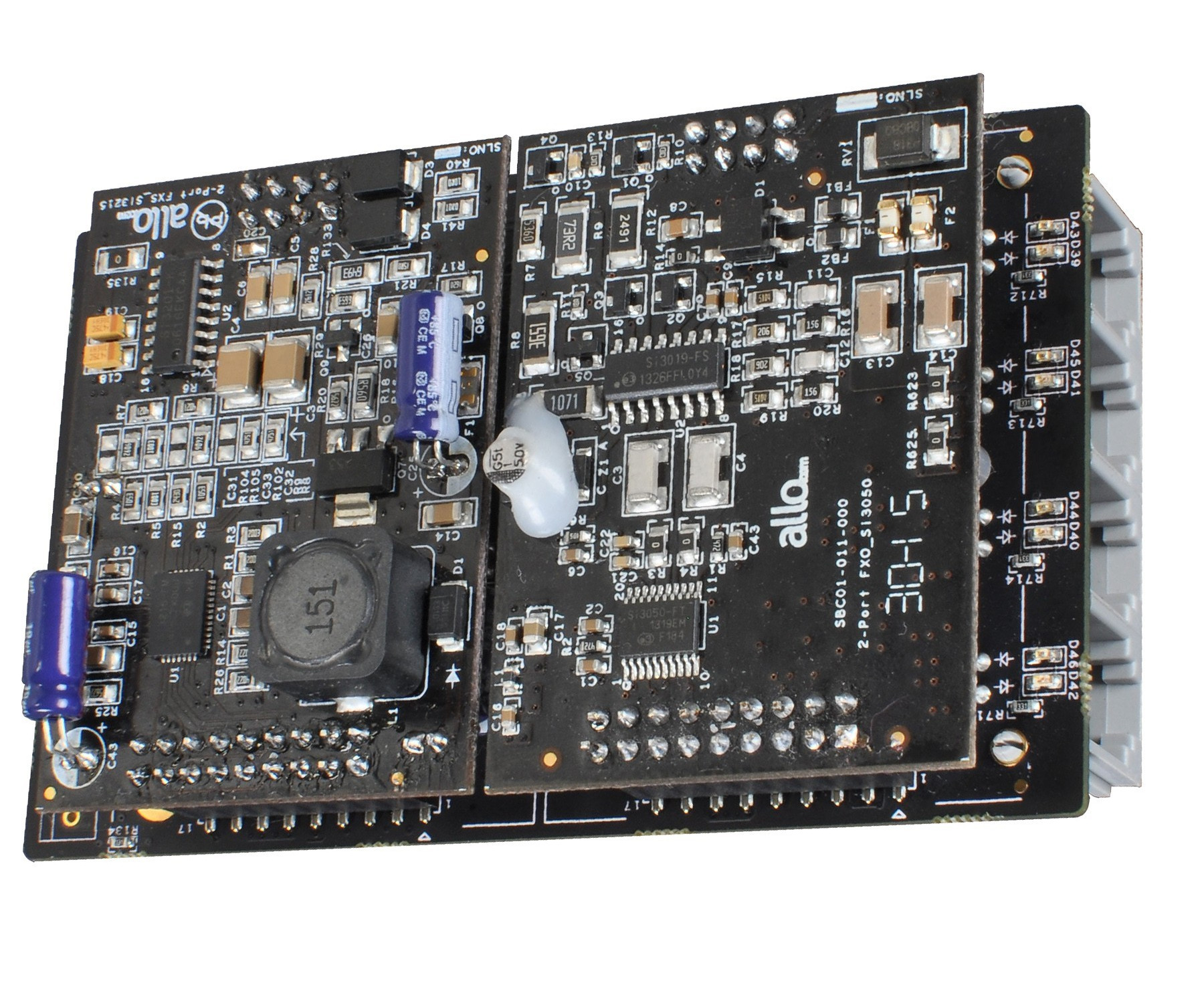

The Analog Telecom Shield is used to bridge the FXO/FXS ports to IP. This addition will allow Sparky to become a PBX system (using Asterisk or similar) and you can also design your own analog gateway.

With its 4 analog ports, you can chose from a mix of 2FXO/2FXS or straight 4FXS/4FXO.

Currently, we support Asterisk 13.2 with Dahdi version 2.10.1 (modified for SPI).

We have customized the user interface which is PHP based.

Features

  • 2 x 2 channel FXS or FXO daughter boards with daisy chain mode
  • On/Off Hook LED Indication
  • J-TAG Interface for Programming
  • Field upgradable

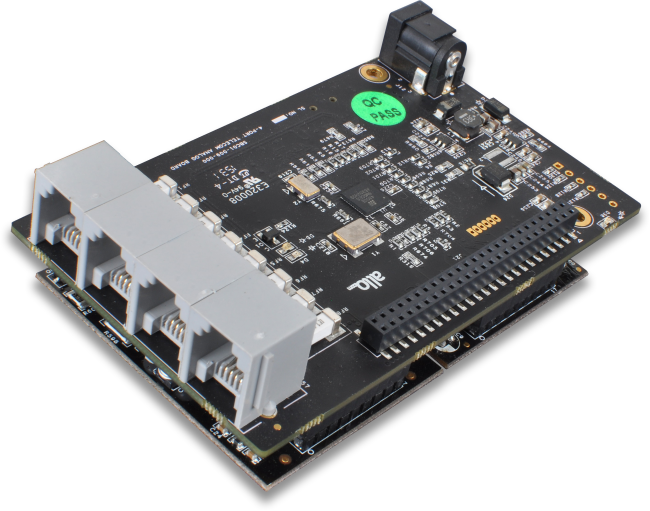

Top View

Top View

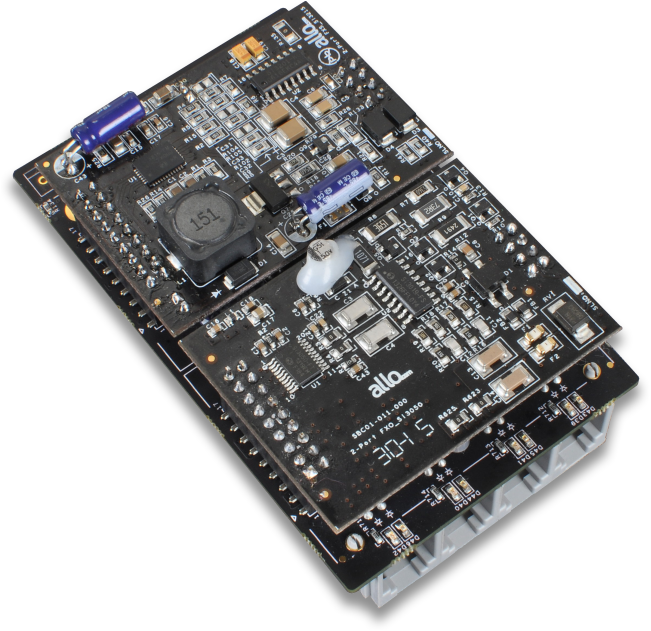

Bottom View

Bottom View

Technical Specifications
Total Power Consumption 3.3Watt / 12V/3A DC Input Supply
Board Size LWH = 95mm * 58mm * 16mm
