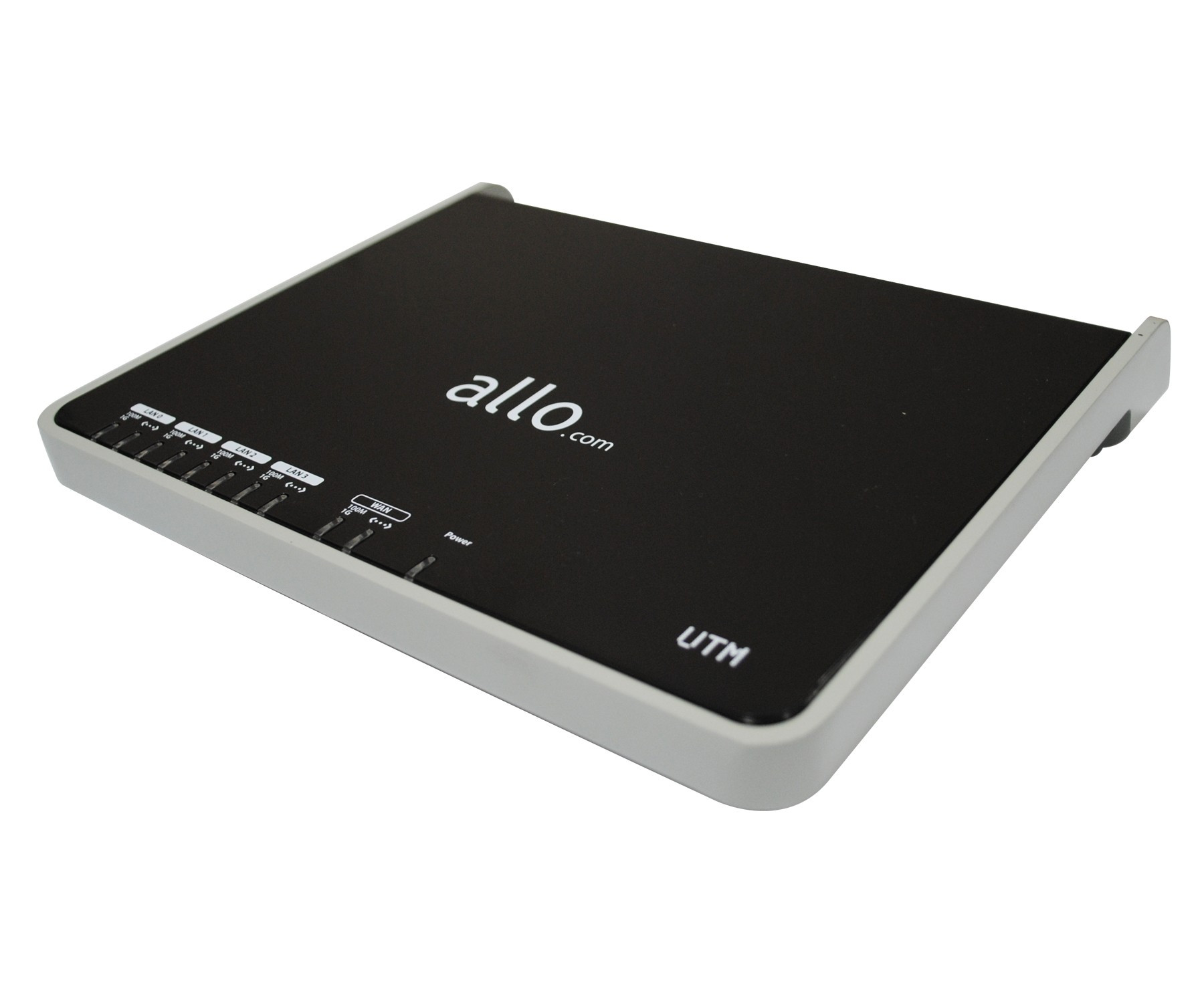

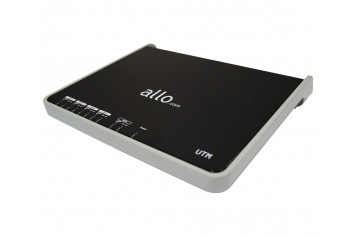

Unified Threat Manager

https://www.allo.com/shop/277-thickbox/unified-threat-management.jpg

Price: Price:
$675.00*

* Price to be confirmed once released. The above price is tentative.

Click hereRelease Date: To Be Announced

Advanced state full firewall integrated with L7 application control, intrusion prevention, SSLVPN, IPSec VPN, web filtering, users authentication functionalities.

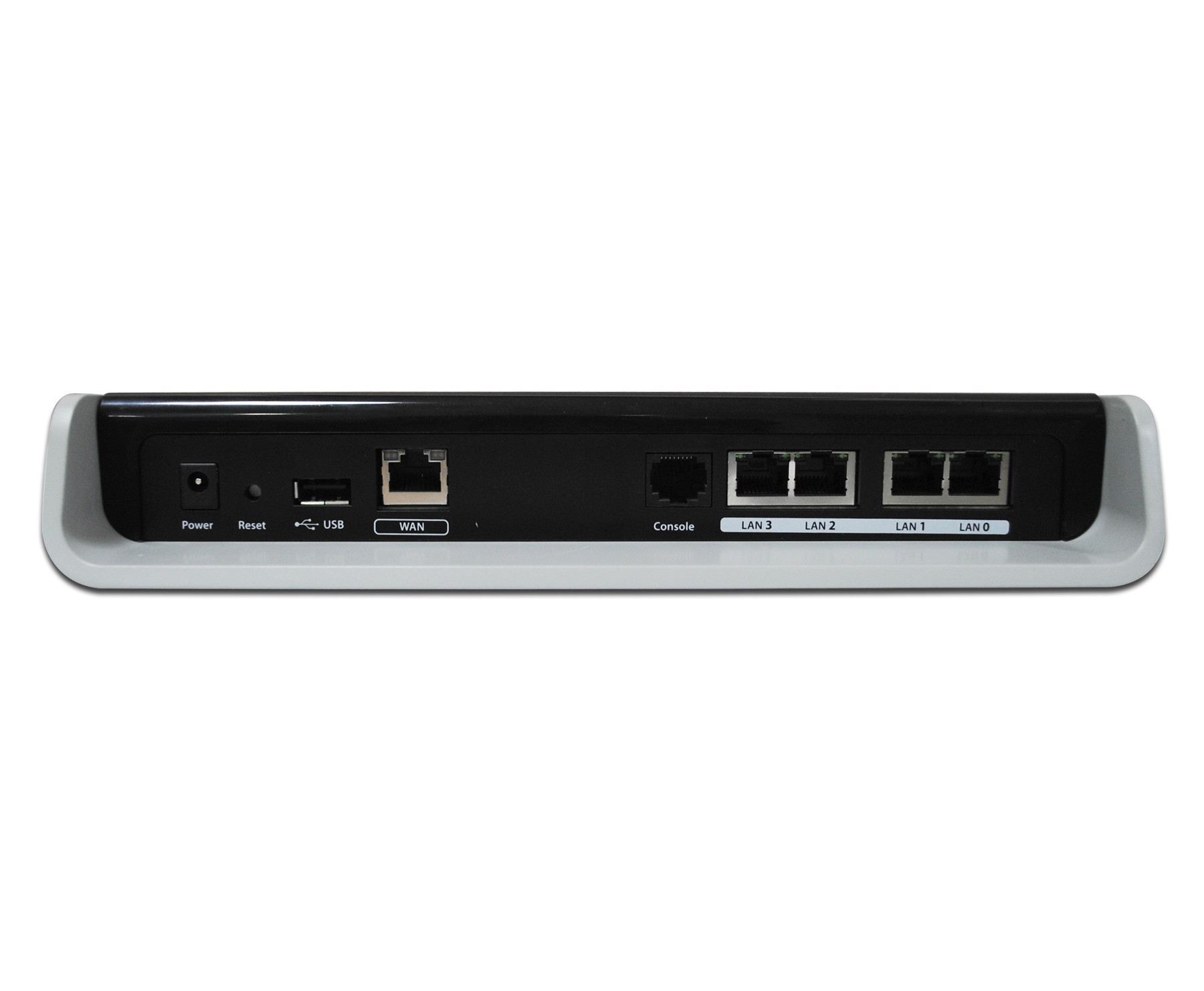

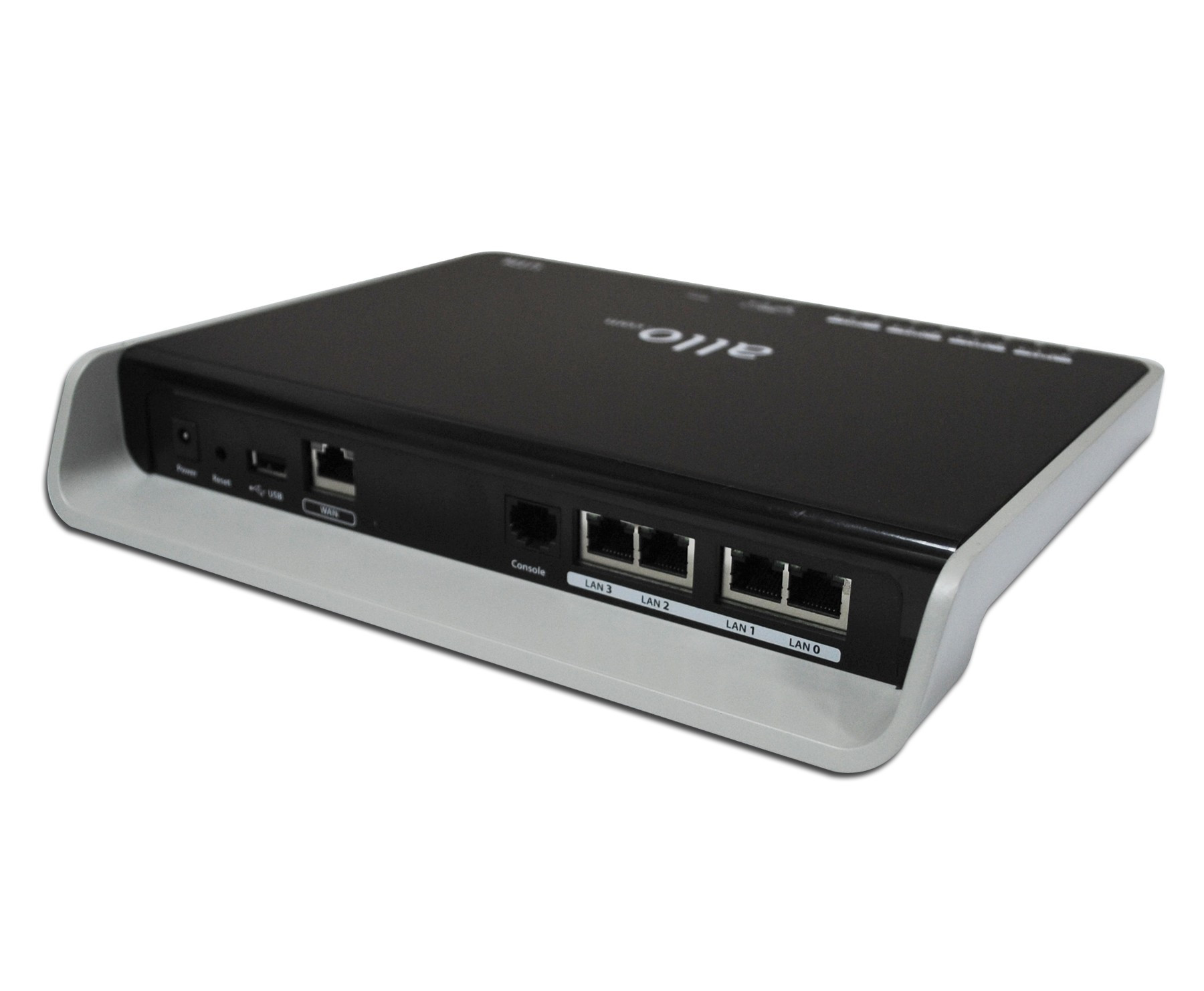

Shield UTM appliances comes with four 1Gbps LAN ports & two 1Gbps WAN ports, one auxiliary console port & One USB port.

Features
Tech Specs
User Interface
Support & Downloads

Features

Firewall

State full Firewall with connections tracking capabilities
Dynamic/Static NAT, Port forwarding
Prevention of DOS, DDOS & IP Spoofing
Bandwidth control
Multicast forwarding
TCP syn cookies
MAC filtering
QOS/Diffserv marking
Content Filtering - Blocking Java/ActiveX/Proxy/Cookies
L7 Application Control with 70+ protocols support
Transparent Firewall/Routed Firewall mode
Use of Policy Objects for Firewall/NAT Policies Configuration
Support for multiple firewall zones
Zone based security policies

Intrusion Prevention

Intrusion Prevention enabling both Signature based Detection and Detailed Protocol Decoders.
Support for Automatic Signature Updates
Support for Custom Signatures with Intuitive signature configuration wizard
Supporting the signatures from Emerging threats/Snort VRT

SSLVPN

SSLVPN Solution - Access Gateway Mode
SSLVPN Site-to-Site VPN tunnel support
Locally managed SSLVPN Client Profiles
Two factor Authentication enabling Password/Certificates based Authentication for SSLVPN Clients
Use of Pre shared Keys/Certificates for P2P Authentication
TCP/UDP Based Tunnels
AES/DES/BF/CAST5/RC2 Encryption
Traffic compression
Tunnel All Traffic mode support on the client side.
Supporting up to 25 VPN Clients
Support for Mobile VPN Clients
Easy to use VPN User Profiles/P2P Policies Configuration

IPSec

Tunnel/Transport Mode
IKE Exchange - Main/Aggressive/Base mode
DES/3DES/Blowfish/Cast128/AES Encryptio
MD5/SHA Digest Authentication
Pre shared Keys/Certificates/Password Authentication
IKE/Diffe Hellman Group
AH/ESP Support
IPSec/PFS Group Support
Traffic Compression
Dead Peer Detection

Web Filtering

Web filtering with Squid Proxy – Support for URLs/Regular expression based Filtering
Categories based Filtering with URL Blacklist service
Users/User Groups based Web filtering Policies
SSL Proxy
Explicit/Transparent Proxy mode support
Limiting Http connections per Network/Users/User Groups
Filtering based on Web request/response size
SSL Control
Digest Based Authentication for locally managed Users
Web Caching with USB Based Storage
Localization Support for Web filtering Blocking Pages
Custom Webfilter Blocking Page support
External Webproxy support

Antivirus

Onboard ClamAV Engine support
AV Inspection of Web traffic

Network

DHCP Server Support per Network Subnet/Vlan
DNS
Static routes
Virtual IP
DDNS
VLAN/801.q
Dual WAN with Wan Failover/Load Balancing (Only Available in SMB Model )
Firewall zones/port mapping
PPPoE Support

Device Management

WebUI accessible via SSL
SSH CLI access
NTP
SNMP v1/v2/v3 support
Syslog
Provision to update firmware via WebUI
Factory Reset
Diagnostic utilities
Certificates management for web proxy/SSLVPN/IPSec services

Reports

Log viewer for accessing Syslog logs/Security Alerts
Firewall Connections Monitoring
DHCL Clients Status
VPN Connections Monitoring
Graphical reports on System Resources Usage/FW Connections Monitoring/IPS Alerts
Web filtering Reports
Bandwidth usage report

Technical Specifications

No of Interfaces	Two 1Gbps WAN port & four 1Gbps LAN ports, 1 console interface, 1 USB port
Status Firewall Inspection	Yes
Deep Packet Inspection	Yes
Signatures Support	~4000 active signatures from snort VRT/emerging threats
Application Protocols Detection	70+
Maximum No of Connections	20000
Maximum No of New Connections Per Second	1800
Maximum No of SSLVPN Clients	100
Authentication	X509 certificates, internal user DB
Logging	Local log viewer, syslog
Device Management	HTTPS GUI, SNMP
Hardware	Cavium Octeon II 63xx, 2cores 800MHz
RAM	1 GB
