8 Port Analog (FXS/FXO) And VOIP Asterisk^TM PBX

Price: Price:
$375.00

Warranty

1 Year

Using Asterisk^TM 1.6 and all its rich features, this compact yet powerful hybrid (PSTN/VOIP) PBX system is ideal for most SMBs and SoHos.

It can handle up to 6 Analog extensions (FXS) and 2 incoming PSTN lines (FXO) as well as 30 IP extensions.

Certifications

Features

8 user conference
FAX and VOICEMAIL to Email
G.722 codec supported
Callback
Call restriction
Billing interface
CDR
Music on hold
Directory service
Software programmable Analog ports for dual coinfiguration: 4 FXS / 4 FXO or 6 FXS / 2 FXO
RTC (Real Time Clock & Date)

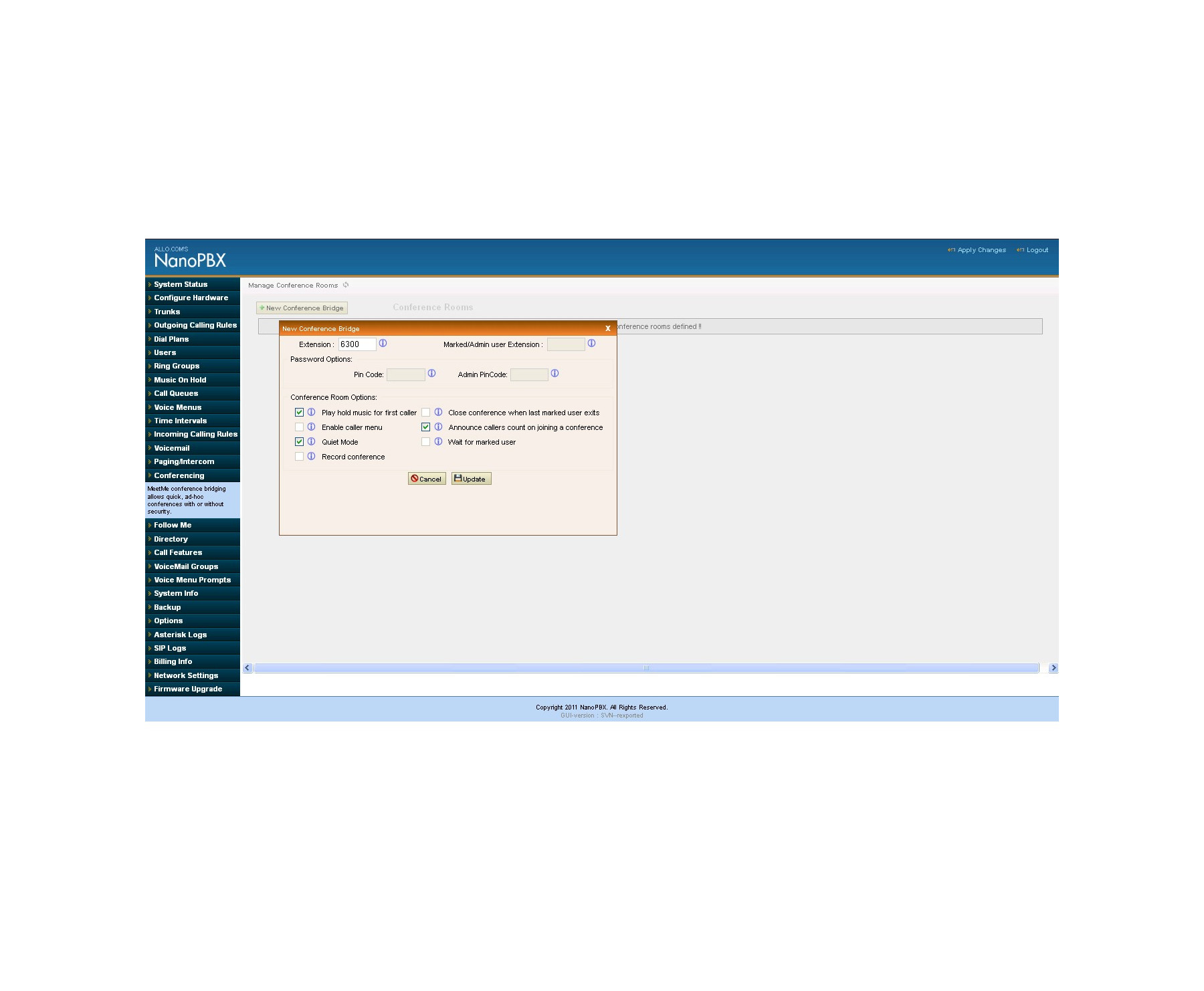

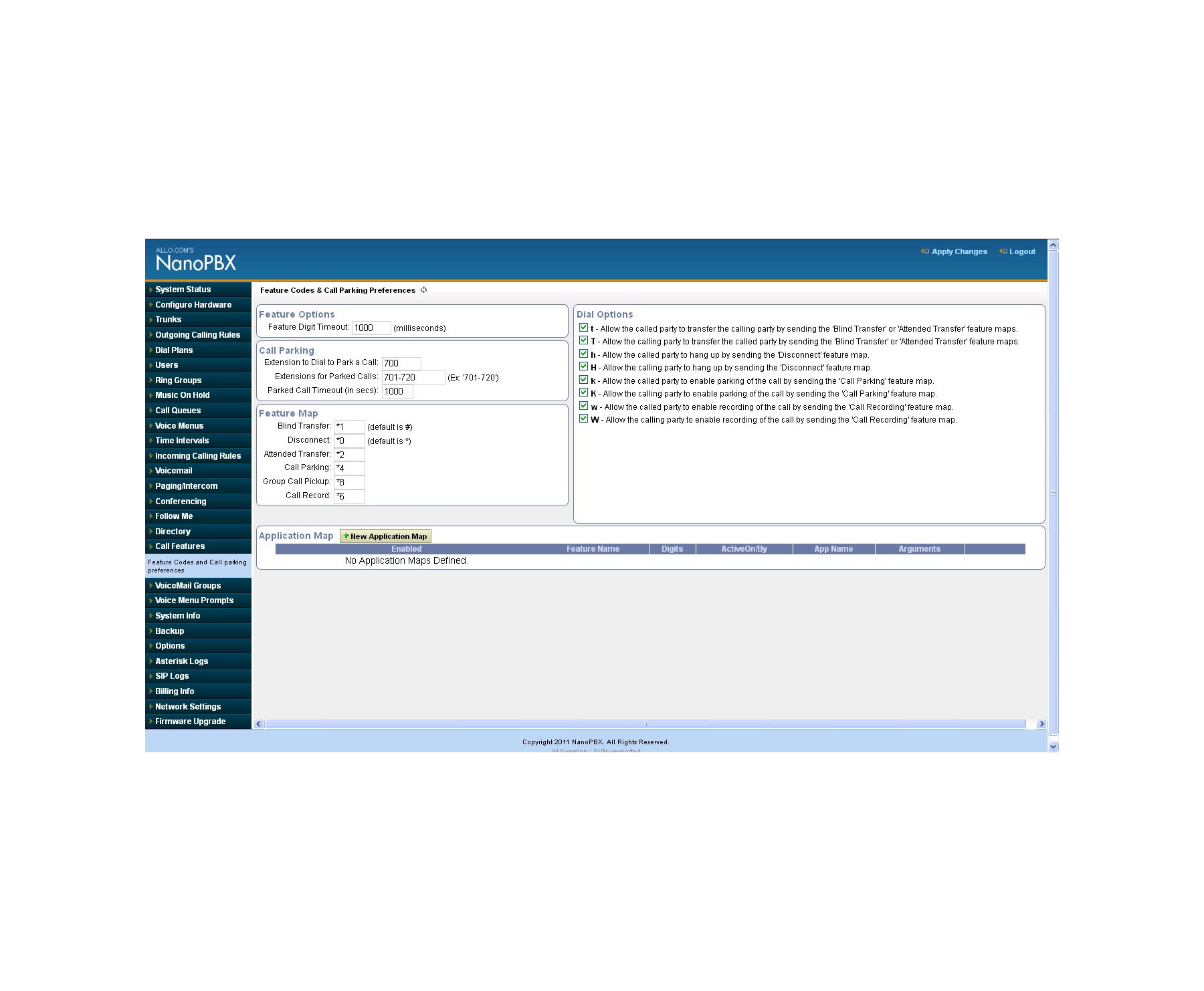

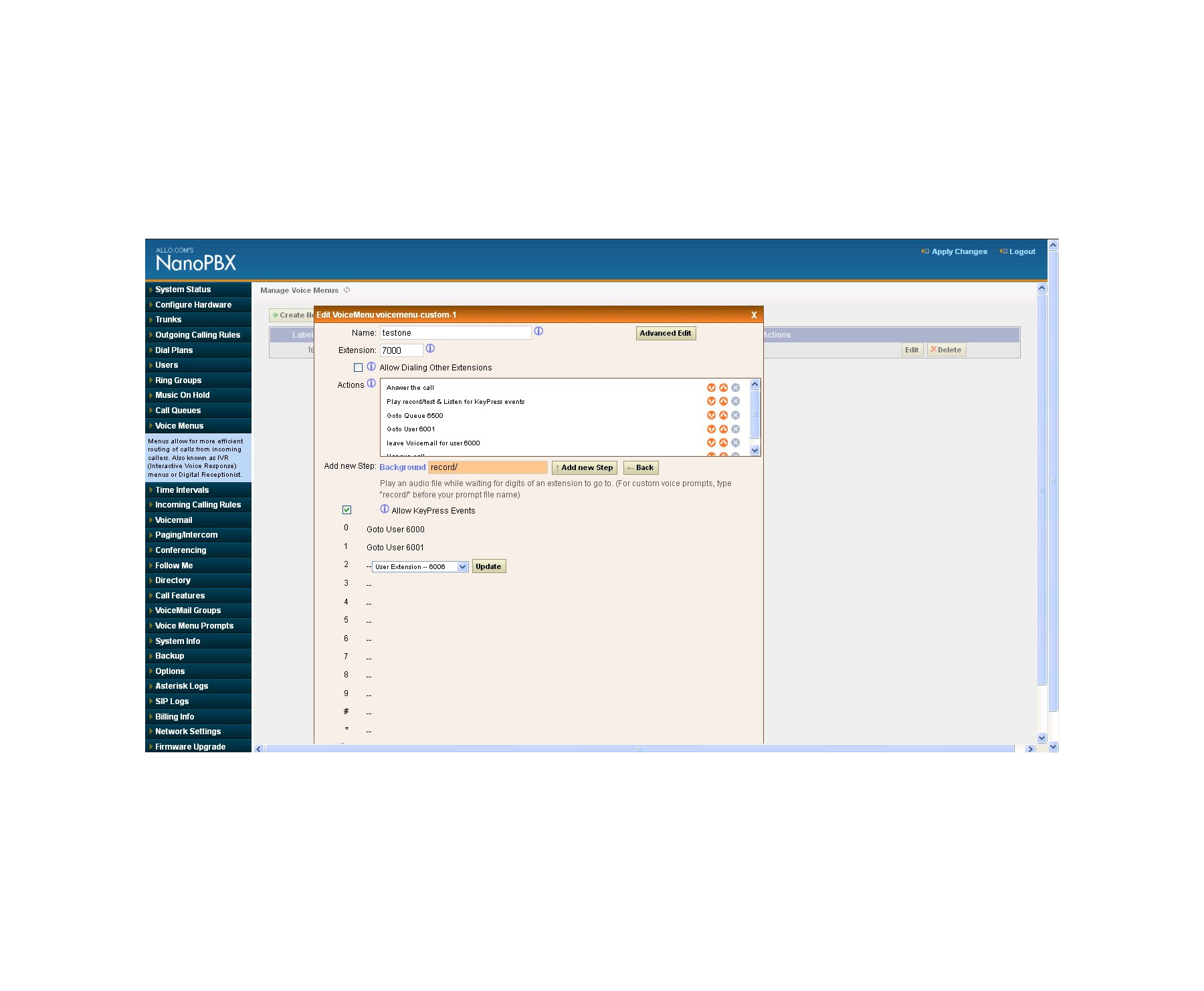

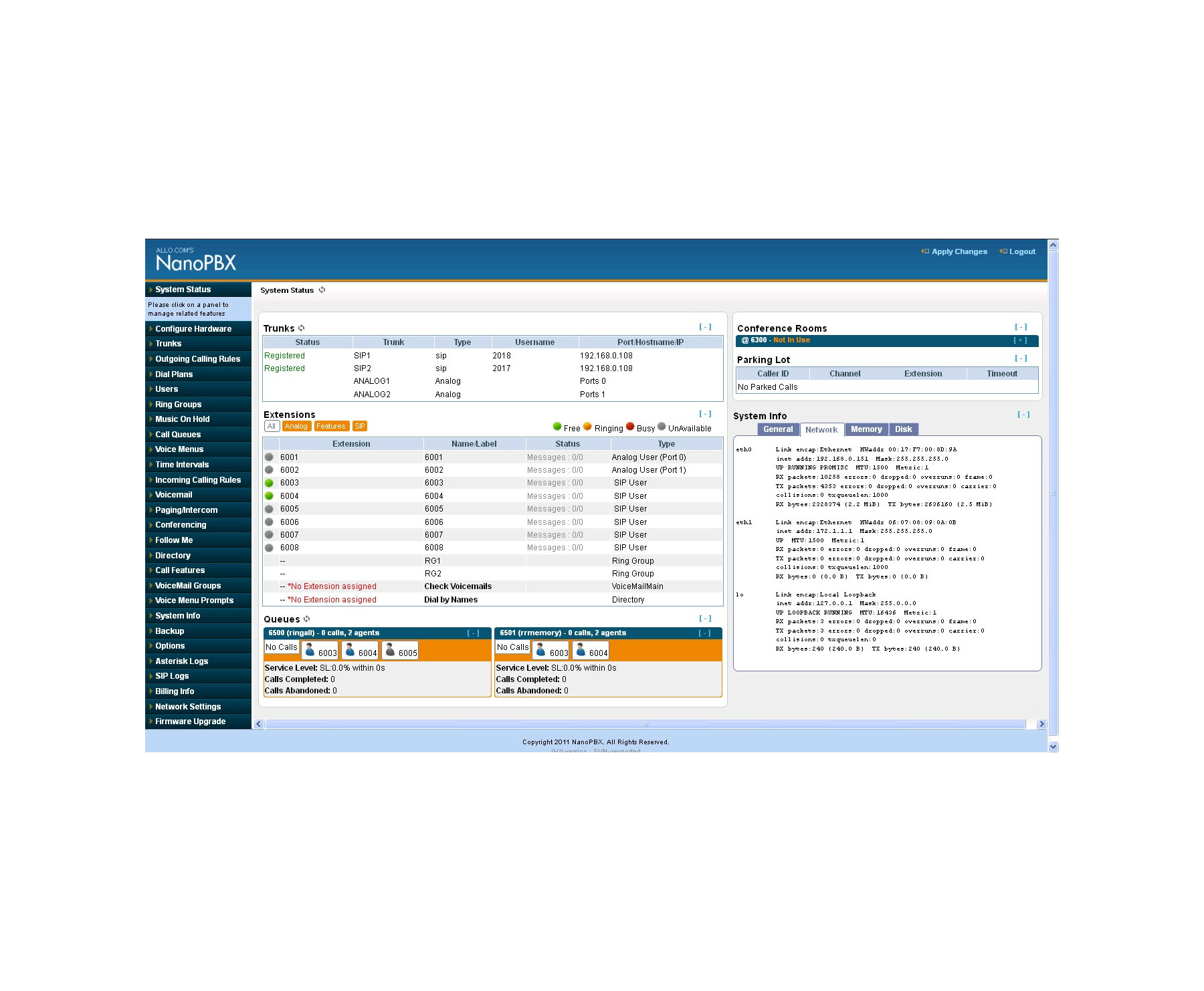

Easy to use GUI
8 GB USB drive for music, voicemail, etc. (expandable)

Call Features

Messaging

System Capacity

Auto-Attendant Features

Reporting

Technical Specifications

Model Name	CPX-003

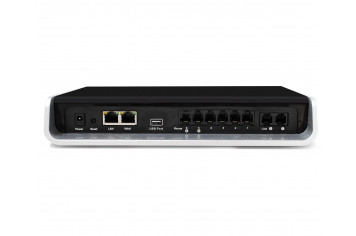

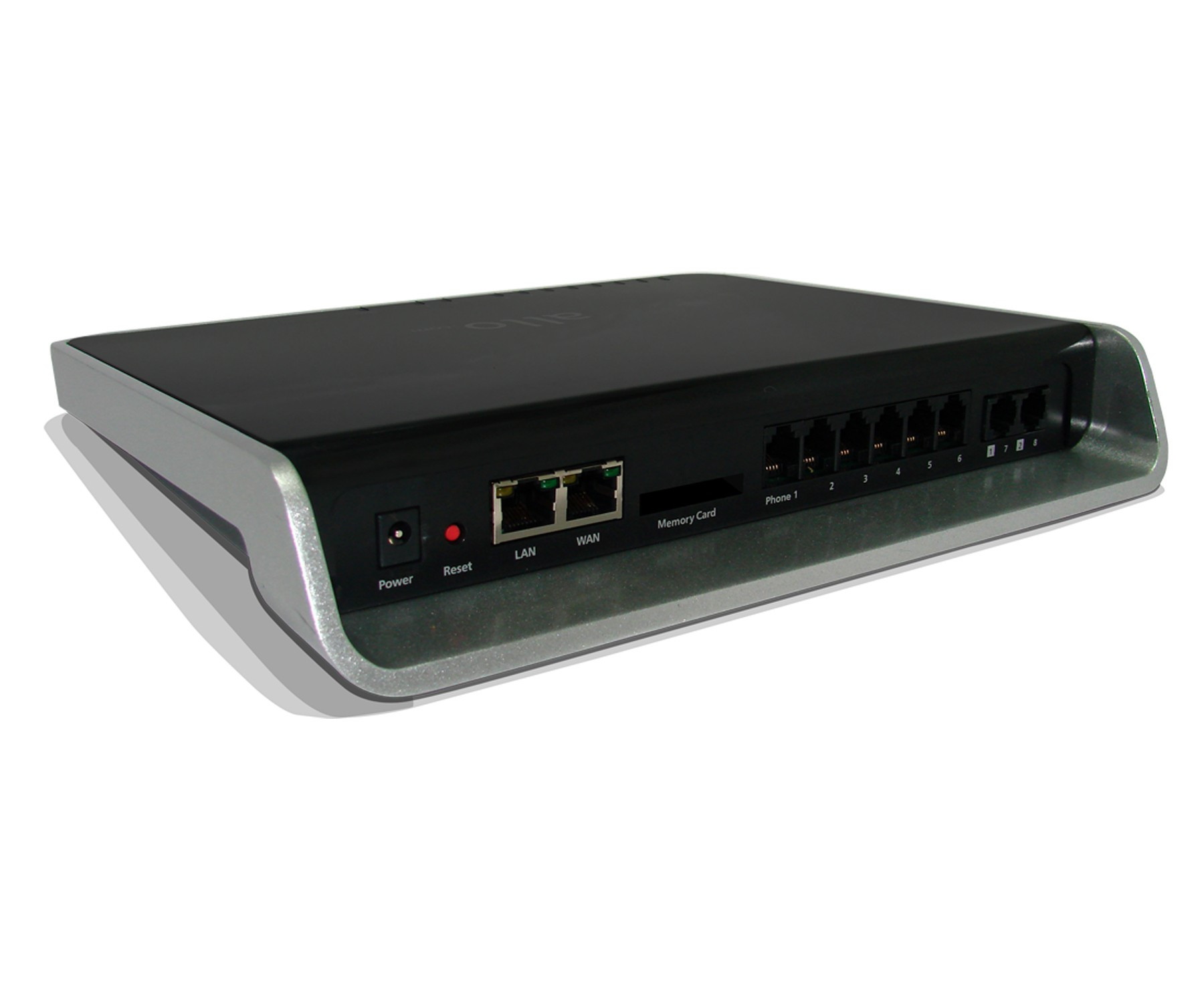

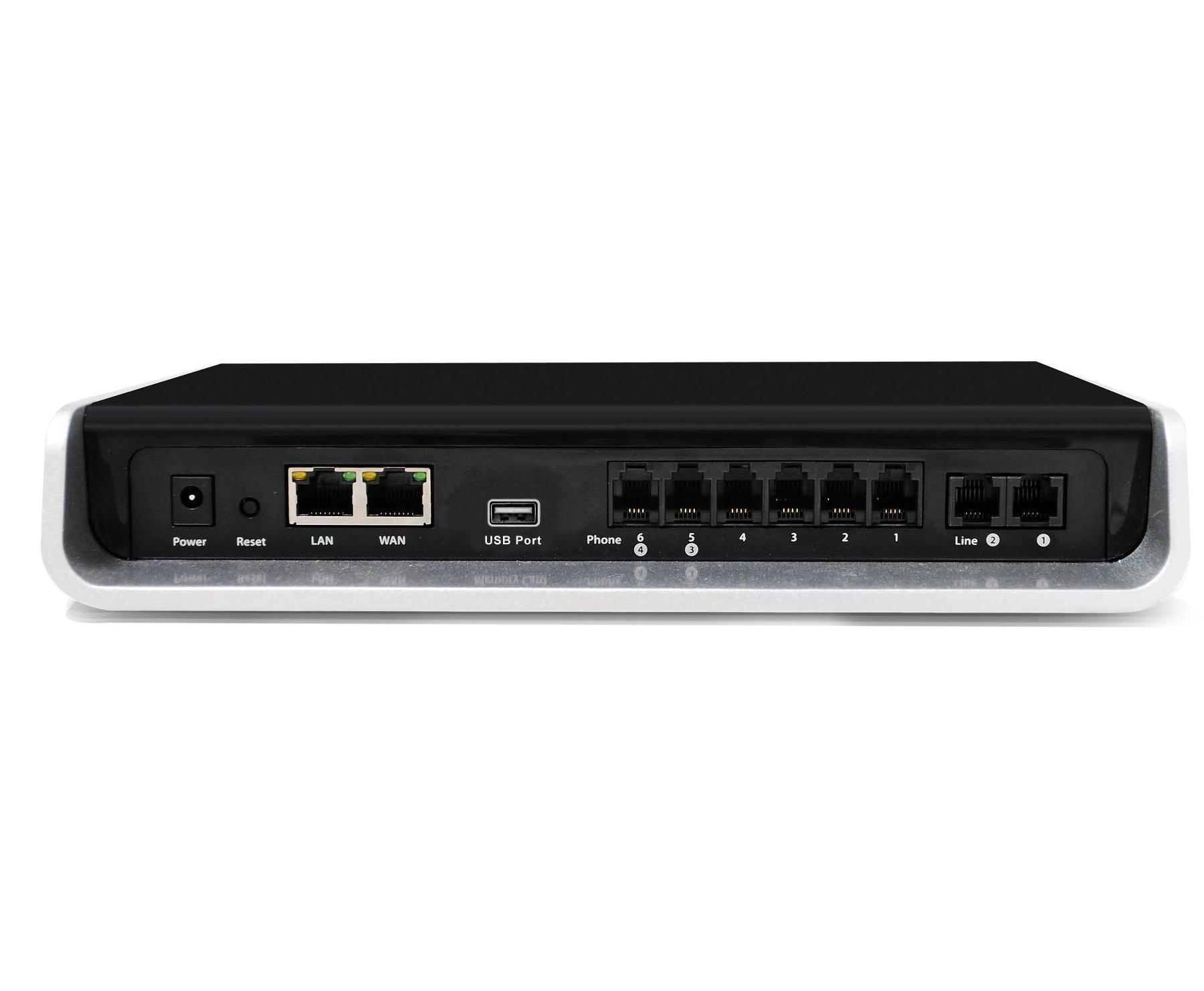

Ports	2 10/100Mbps RJ-45 network port for WAN/LAN 6 RJ-11 FXS Port for VoIP (programmable) 4 RJ-11 FXO port for PSTN
LEDs	Power, ethernet, phones and lines
Memory	8 GB USB drive
Voice Protocol	Session initiation protocol (SIP v2)
Voice Codec	G.722, G.711 A-law, G.711 μ-law, G.729AB, G.726, G.723.1
Ringer Equivalence	3 REN per RJ-11 port
Ring Frequency	30Hz
FXS Port Impedance	Pre-set progress tones for multiple regions including 600 / 900 ohms
Ring Voltage	90 Vrms configurable
Security	Password-protected management

Physical & Environmental
