Home Analog Gateway

Analog Gateway 4, 8 & 16 Ports (NEW! 8 Analog + 8 ISDN BRI Model)


$270.00

Warranty
1 Year
Click hereOut of Stock

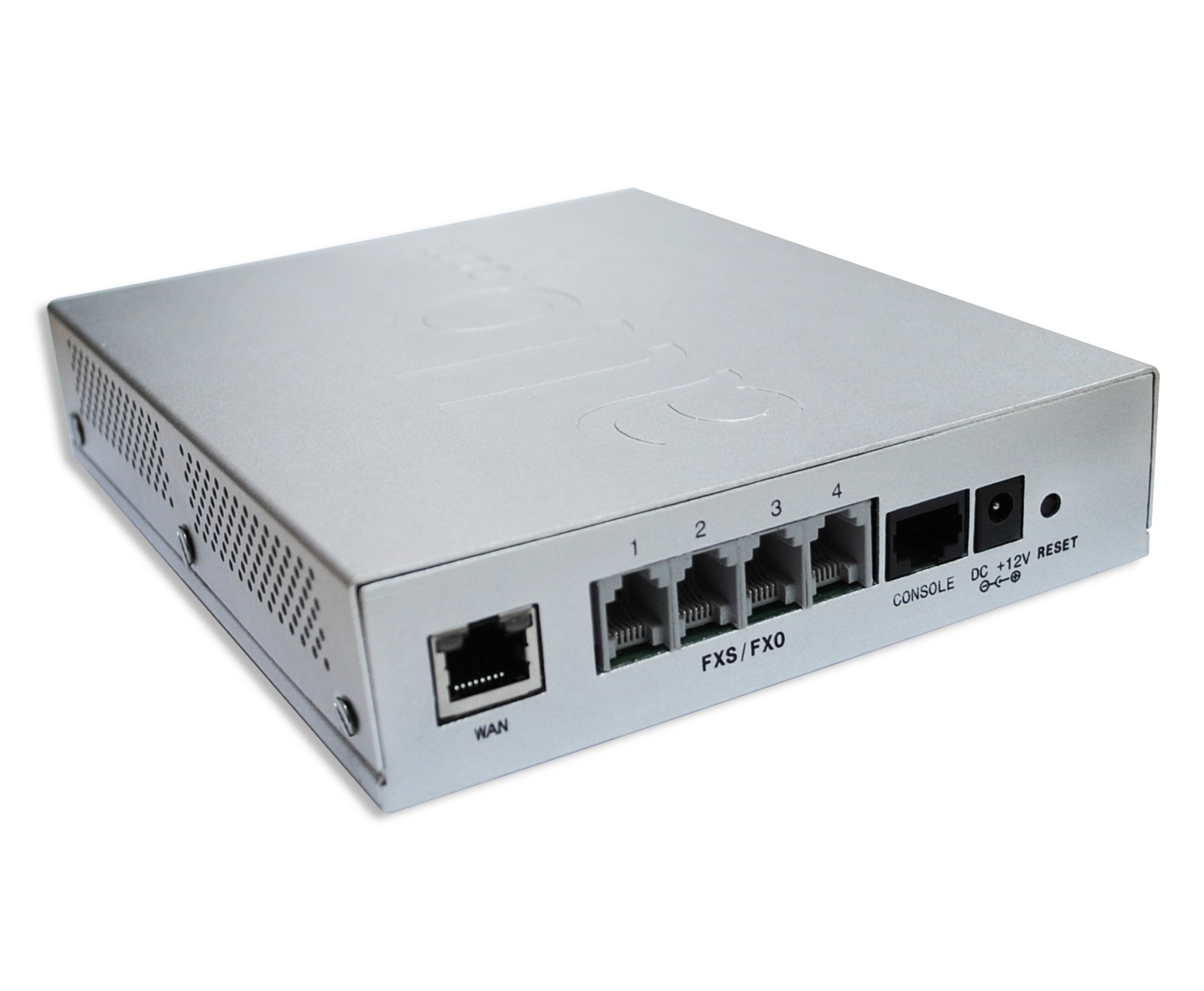

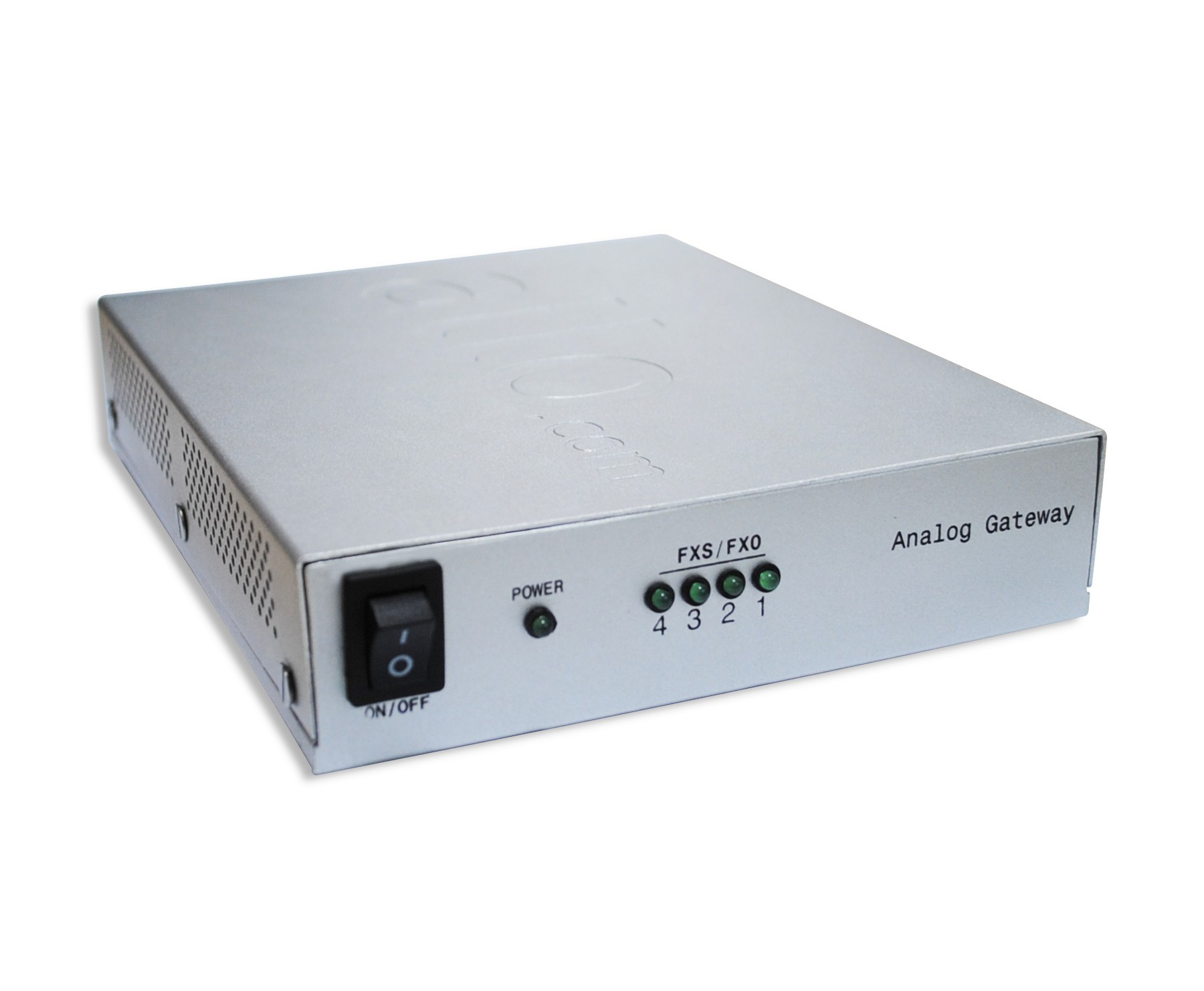

This gateway is standalone, fanless and can convert up to 16 analog ports (FXO or FXS modules) to VOIP.

A new model offers 8 FXS/FXO modules alongside 8 ISDN BRI modules. Hardware DSP for LEC and transcoding is included.

Features

  • Compatible with ElastixTM, AsteriskTM, TrixboxTM, FreePBXTM ,3CXTTM (Only the 4 port model)
  • On board 128ms Line Echo Cancellation DSP
  • On board Transcoding (G711, G729) DSP
  • 4, 8, 16 analog ports ( FXO or FXS) and 8 analog ports (FXS/FXO) + 8 ISDN BRI model
  • T.38 fax relay
  • Pre-configured for almost plug and play experience
  • Clean and easy to use webinterface
  • Caller ID
  • DTMF Digit Detection and Generation
  • SIP User Agent IETF RFC3261 compliant
Technical Specifications

  • RJ11 FXO/FXS ports
  • On board 128ms Line Echo Cancellation DSP
  • Ethernet Ports: 2 RJ45 10/100Mbps (LAN/WAN)
  • Power Input: 12 V DC, 3.5A
Operation Temperature 10°C to 40°C (50 F to 104 F)
Storage Temperature 0°C to 50°C (32°F to 122°F)
Operating Humidity 10% to 90%, Non-condensing
Storage Humidity 5% to 95%, Non-condensing
Dimensions 17cm X 14cm X 3.4cm
Weight 370gms
Power Input 12V DC / 3.5 A
User Interface

Access to GUI Demo - Click Here

Username: admin
Password: admin
